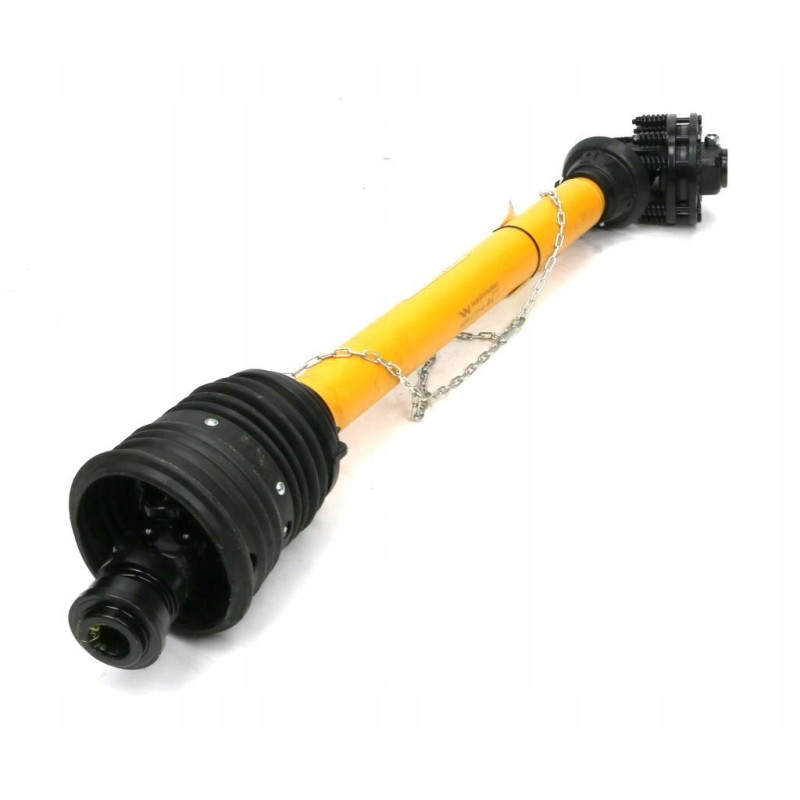

Articulated and telescopic shaft 860 1200mm 460nm 900nm

PTO shaft 860-1200mm 460Nm friction clutch 900Nm wide angle CE 3R series WARYŃSKI EAN: 5902287204452

SKU: W35290860

All products on our auctions are new and from proven manufacturers

The new R Series of Waryński rollers was created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. The high quality of our products is guaranteed by forged forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV and low temperatures. Thanks to the use of a special ring, Waryński shafts guarantee quick installation.

Clutch: friction clutch, wide angle Maximum length: 1250 mm Minimum length: 860 mm Inner tube thickness: 36 mm Outer tube thickness: 43.5 mm Nominal power: 26 (35) KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque:460Nm Working angle:Max 35° temporarily 80° Bearing diameter:27mm Cross height:74, 6mm Type of telescopic connector: Triangular pipe Works with: External fork - WR227301, Cross connector - WR219301, Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR21931129, Coupling - WR213350 Inner pipe wall thickness:4.5mm Outer pipe wall thickness:3.4mm Packing in:: 1

Attachment to tractor: 1 3/8' Z6'in

Attachment to machine: 1 3/8' Z6'in

Telescopic connector type: Triangular pipe< p>

Minimum length: 860mm

Maximum length: 1250mm

Nominal power: 26 ( 35 )KW (HP)

Clutch: friction clutch , wide-angle

Thickness of the inner tube: 36mm

Thickness of the outer tube: 43.5mm

Bearing diameter: 27mm

Height of the cross: 74 ,6mm

Works with: External fork - WR227301, Cross fork - WR219301, Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR21931129, Clutch - WR213350

Torque: 460Nm

Operating angle: Max 35 ° temporarily 80°

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

Packing by: 1

< p/>The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
