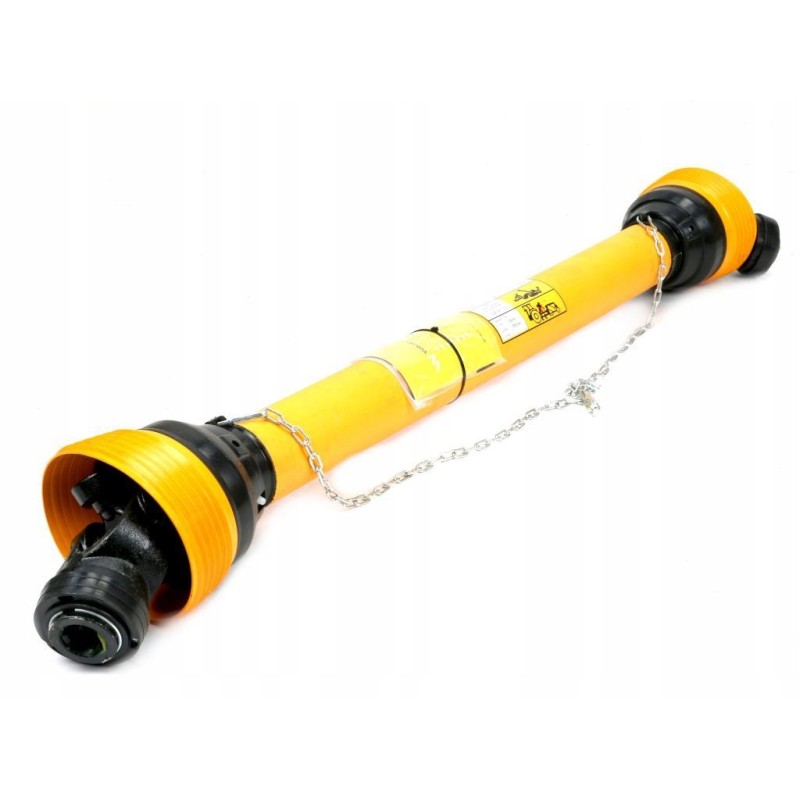

Articulated and telescopic shaft 1250 1900mm 830nm z6

PTO shaft 1250-1900mm 830Nm Z6 - 1 3/4 CE 2020 series 6R Waryński EAN: 5902287211276

SKU: W6B1B51250

All products on our auctions are new and from proven manufacturers

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: None Pipe thickness internal:45mm Outer tube thickness:54mm Nominal power:47 ( 64 )KW (HP) Mounting to the machine:1 3/4' Z6' inch Mounting to the tractor:1 3/8' Z6' inch Torque:830Nm Working angle: Max. 17° Bearing diameter: 30.2 mm Cross height: 91.6 mm Telescopic connector type: Triangular pipe Minimum length: 1250 mm Maximum length: 1900 mm Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer tube fork - WR219606, Inner tube - WR2140600, Outer tube - WR2141600, Housing - WR22961129, Clutch breaking power:NoneNm Inner tube wall thickness:5.5mm Outer tube wall thickness:4mm Packing in::1

Tractor attachment: 1 3/8' Z6' inch

Machine attachment: 1 3/4' Z6' inch

Telescopic connector type: Triangular tube< p>

Minimum length: 1250mm

Maximum length: 1900mm

Nominal power: 47 ( 64 )KW (HP)

Clutch: None< p>

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Bearing diameter: 30.2mm

Cross height: 91.6mm< p>

Works with: External fork - WR227601, Krzyżak - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2140600, Outer pipe - WR2141600, Housing - WR22961129,

Clutch disengaging power: NoneNm

Torque: 830Nm

Working angle: Max 17°

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

Packing by:: 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
