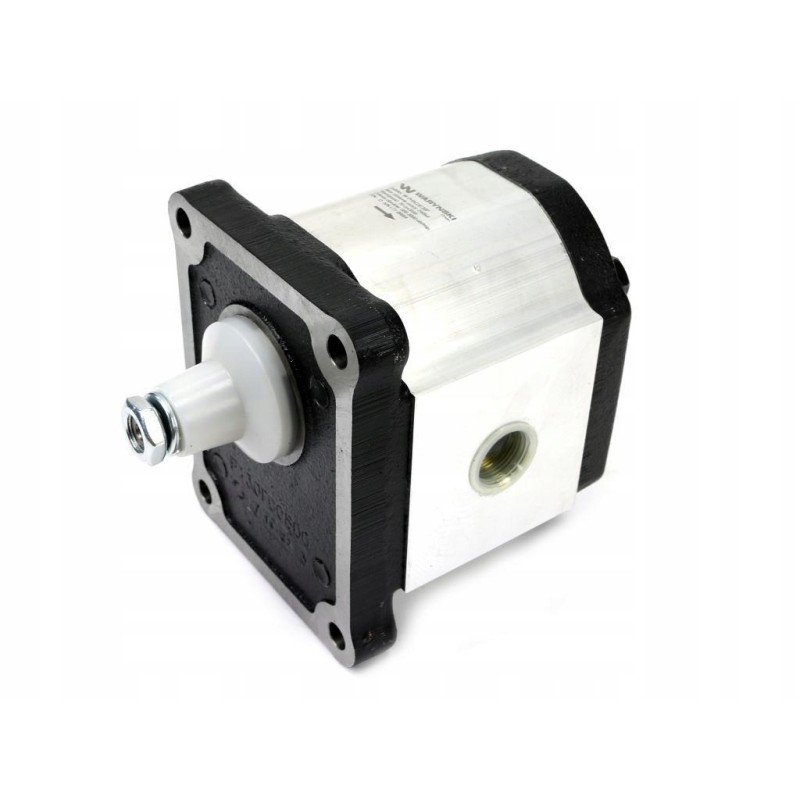

Hydraulic gear pump 39 0cm3 group 3 type e

Hydraulic gear pump 39.0 cm3 (group 3 - type e Index W-PHAG3E39PHydraulic pump, reinforced W-PHAG3E39P (performance: 39.0 cm3/rev) Waryński. Hydraulic pumps of 3 groups Waryński thanks to their small, compact dimensions and compact and durable design structures are widely used in many industries, agriculture and mobile hydraulics. Our pumps are additionally reinforced with cast iron covers - this guarantees long and failure-free operation. The geometric working volume of pumps in this group ranges from 22 to 61 cm3/rev.

Capacity: 39cm3/rev

Type: Gear hydraulic pump, European type

Rotation direction: right

Rotation range: 500 - 3000 rpm /min.

Material: Aluminum body, cast iron plates, seals: NBR

Max. Instantaneous pressure: 26 (260 bar) - Note: maximum 20 seconds / 1 minute of pump operation (exceeding these parameters may damage the pump)Mpa (bar)

Max operating pressure: 240bar

Max. nominal pressure: 24 (240 bar) - Note: maximum continuous operating pressure of the pumpMpa (bar)

Max. peak pressure: 27 (270 bar) - Note: maximum 8 seconds / 1 minute of pump operation (exceeding these parameters may result in immediate damageMpa (bar)

Type of oil: hydraulic mineral HLP HV (DIN 51524)

Oil filtration: 10 -25µm

Oil purity class: NAS 1638: 9 / ISO 4406:1999: 20/18/15

Shaft: conical 1:8, M14x1.5

Operating temperature: 20°C +80°C

Suction port: 1' BSPPcal

Discharge port: 3/4' BSPPcal

Centering flange diameter: 50.8mm

Spacing of mounting holes: 98.5 x 128.0mm

EAN 5902287107920
