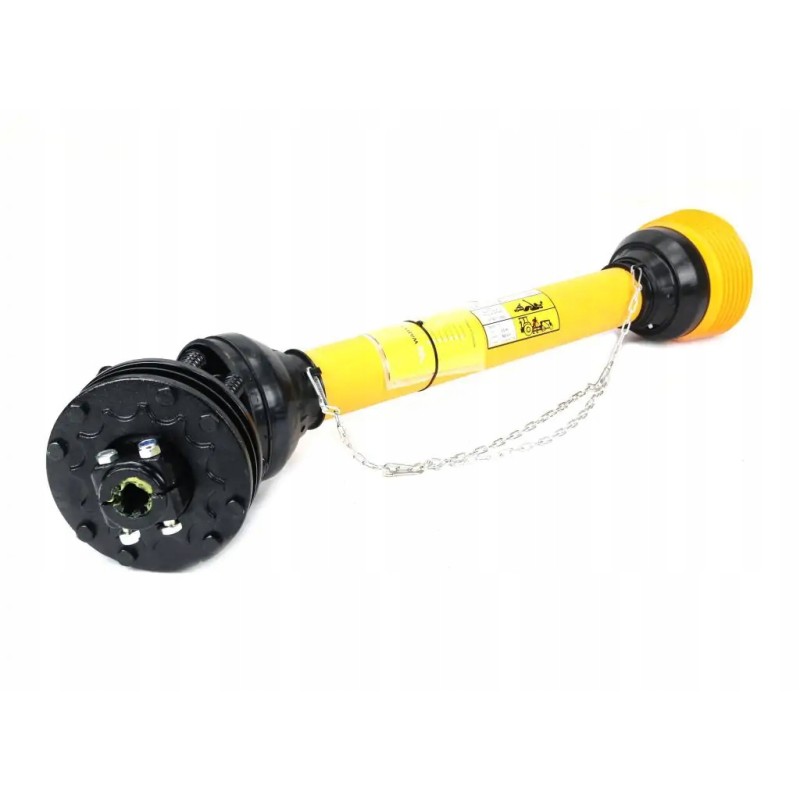

Articulated and telescopic shaft 660 870mm 970nm clutch

PTO shaft 660-870mm 970Nm friction clutch Z21 1700Nm CE 2020 7R series Waryński Index W7B164660Clutch: Friction clutch

Maximum length: 870

Minimum length: 660

Thickness of the inner tube: 45

Thickness of the outer tube: 54

Nominal power: 55 ( 75 )

Mounting to the machine: 1 3/8' Z21 '

Attachment to tractor: 1 3/8' Z6'

Torque: 970

Operating angle: Max 17°

Bearing diameter: 30.2

Height of the cross: 106

Type of telescopic connector: Triangular tube

Works with: External fork - WR227701, Cross fork - WR219701, Fork external pipes - WR219706, Fork internal pipes. - WR219707, Inner pipe - WR2363505, Outer pipe - WR2362535, Housing - WR22971129

Inner pipe wall thickness: 5.5

Outer pipe wall thickness: 4

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Friction clutch < p>

Maximum length: 870mm

Minimum length: 660mm

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Nominal power: 55 ( 75 )KW (HP)

Mounting to the machine: 1 3/8' Z21'cal

Mounting to the tractor: 1 3/8' Z6' inch

Torque: 970Nm

Working angle: Max 17°

Bearing diameter: 30.2mm

Square height: 106mm < p>

Type of telescopic connector: Triangular pipe

Works with: External pipe fork - WR227701, Cross fork - WR219701, External pipe fork - WR219706, Internal pipe fork. - WR219707, Inner pipe - WR2363505, Outer pipe - WR2362535, Housing - WR22971129

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

EAN 5902287227284

Waryński
