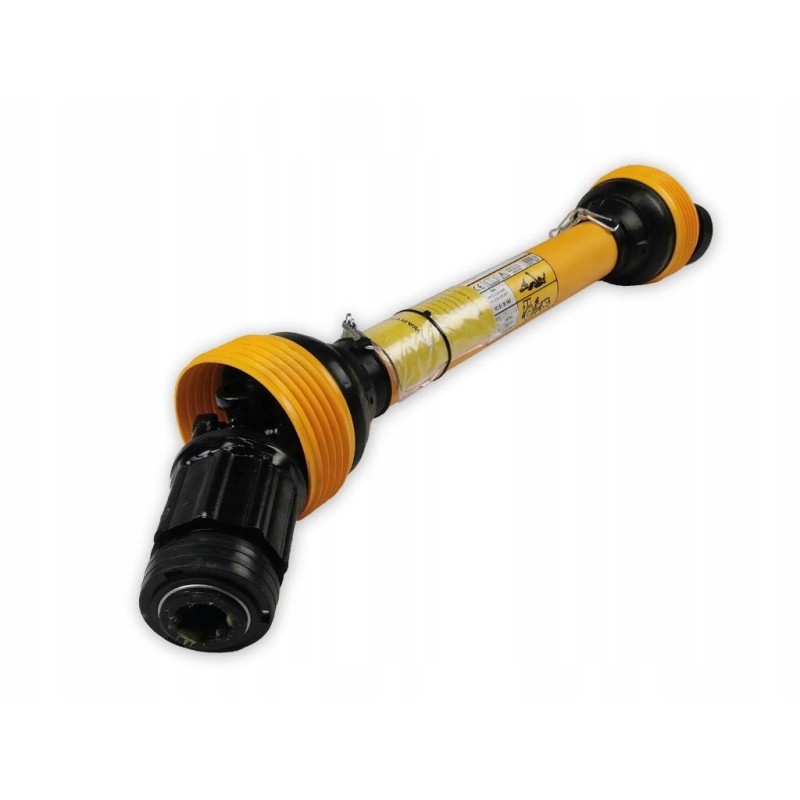

Articulated and telescopic shaft 660 1000mm 460nm 3r

PTO shaft 660-1000mm 460Nm ratchet clutch CE 2020 series 3R WARYŃSKI EAN: 5902287198324

SKU: W3B138660

All products on our auctions are new and from proven manufacturers

< p/> Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Ratchet Packing ::1 Maximum length:1000mm Minimum length:660mm Nominal power:26 ( 35 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque:460Nm Bearing diameter:27mm Cross height:74.6mm Inner tube thickness::36mm Outer tube thickness::43.5mm Inner tube wall thickness:4.5mm Outer tube wall thickness:3.4mm Clutch disconnecting moment:800Nm Telescopic connector type:Pipe triangular Works with: External pipe fork - WR227301, Cross fork - WR219301, External pipe fork - WR219306, Internal pipe fork. - WR219307, Inner pipe - WR2323505, Outer pipe - WR2322535, Housing - WR22931129 Working angle: Max 17°

Mounting to tractor: 1 3/8' Z6' inch

Mounting to machines: 1 3/8' Z6' inch

Telescopic connector type: Triangular tube

Minimum length: 660mm

Maximum length: 1000mm

Nominal power: 26 ( 35 )KW (HP)

Clutch: Ratchet

Bearing diameter: 27mm

Cross height: 74.6mm

Works with: External pipe fork - WR227301, Cross connector - WR219301, External pipe fork - WR219306, Internal pipe fork. - WR219307, Inner pipe - WR2323505, Outer pipe - WR2322535, Housing - WR22931129

Torque: 460Nm

Working angle: Max 17°

Pipe wall thickness internal: 4.5mm

Outer pipe wall thickness: 3.4mm

Clutch disconnecting torque: 800Nm

Packing by:: 1

Thickness of the inner tube:: 36mm

Thickness of the outer tube:: 43.5mm

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
