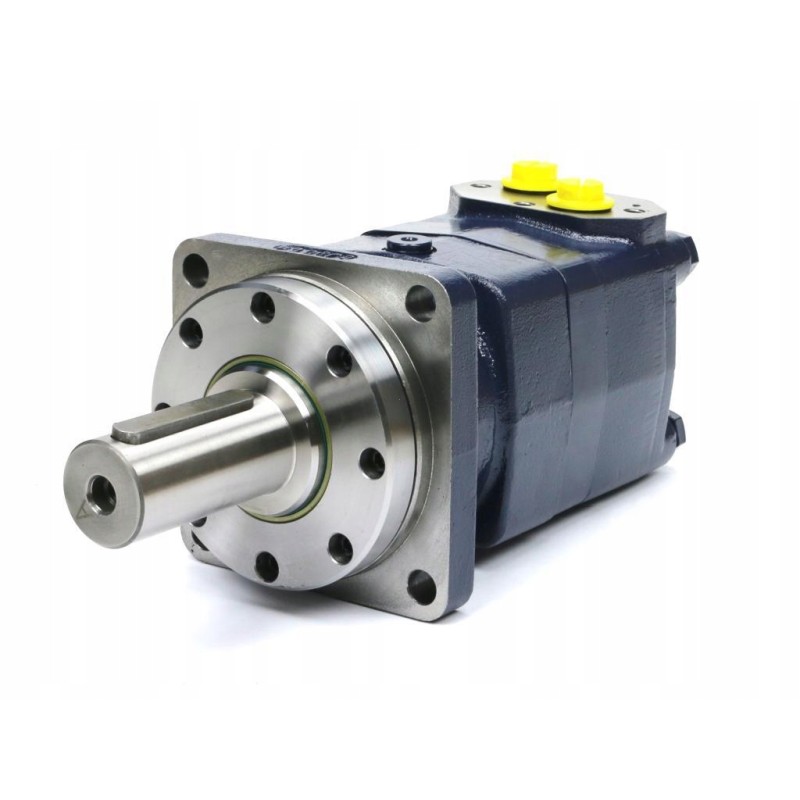

WMT orbital hydraulic motor 250 cm3 rpm

WMT orbital hydraulic motor 250 cm3/rev (200 bar / max. 280 bar) Waryński EAN: 5902287199369

SKU: WMT-250

All products on our auctions are new and proven. manufacturers

WMT orbital hydraulic motor 250 cm3/rev (200 bar / max. 240 bar / max. instantaneous 280 bar) Waryński. WMT series motors are characterized by compact design, high torque and high absorbency. They operate within a range of significant torques at rather low rotational speeds. Can be connected in parallel or in series. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. In order to achieve a longer service life, it is recommended that optimal operating conditions be at the level of 1/3 to 2/3 of the maximum parameters.

Absorption capacity: 252.2 cm3/rev Roller diameter: O40 mm Drain connection thread: 1/4 ' BSP'cal Connection threads: 3/4' BSP'cal Max. working pressure: 24 MPa (240 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar) Max. Instantaneous pressure: 28 MPa (280 bar) - Note: maximum 1 second / 1 minute of engine operation (exceeding these parameters may result in immediate engine damage) MPa (bar) Max. Nominal pressure: 20 MPa (200 bar) - Note: maximum continuous pressure engine operation MPa (bar) Max. output power: 25.2 kW Max. Torque: 883 Nm Max. Nominal torque: 710 Nm Max. Nominal speed: 395 rpm Max. Working fluid flow: 100 l/min Packing in:: 1

Max. Instantaneous pressure: 28 MPa (280 bar) - Note: maximum 1 second / 1 minute of engine operation (exceeding these parameters may result in immediate engine damage)MPa (bar)

Max .Nominal pressure: 20 MPa (200 bar) - Note: maximum continuous engine operating pressureMPa (bar)

Max. working pressure: 24 MPa (240 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine)MPa (bar)

Shaft diameter: O40mm

Absorption capacity: 252.2cm3/rev

Connection threads: 3/4' BSP'cal

Drain connection thread: 1/4' BSP'cal

Max Nominal speed: 395 rpm

Max. Nominal torque: 710Nm

Max. Torque: 883Nm

Max. Working fluid flow: 100l/ min

Max. output power: 25.2kW

Packing by:: 1
