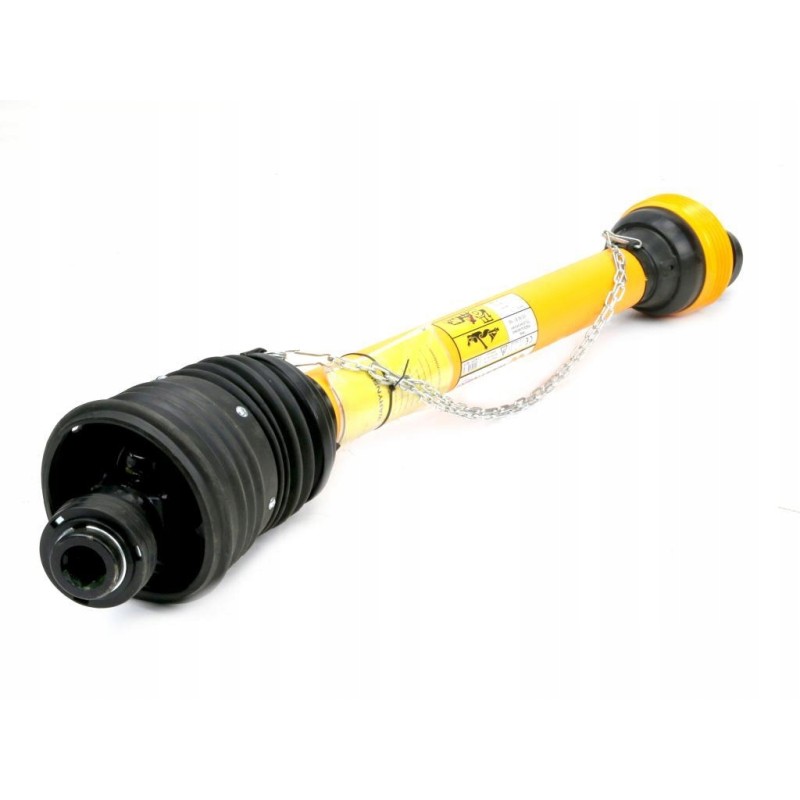

Articulated and telescopic shaft 860 1200mm 460nm 3r

PTO shaft 860-1200mm 460Nm wide-angle CE 2020 series 3R WARYŃSKI EAN: 5902287198447

SKU: W390B1860

All products on our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Wide-angle Disengaging torque clutch:None Packing by::1 Maximum length:1200mm Minimum length:860mm Machine attachment:1 3/8' Z6'inch Tractor attachment:1 3/8' Z6'inch Torque:460Nm Bearing diameter:27mm Cross height :74.6mm Thickness of the inner pipe::36mm Thickness of the outer pipe::43.5mm Thickness of the wall of the inner pipe:4.5mm Thickness of the wall of the outer pipe:3.4mm Nominal power::26 ( 35 )KW (HP) Type of telescopic connector: Triangular tube Works with: External fork - WR227301, Cross - WR219301, External tube fork - WR219306, Wide-angle joint - WR212290, Inner tube - WR2323705, Outer tube - WR2322735, Housing - WR22931129 Working angle: Max. 35° temporarily 80°

Tractor attachment: 1 3/8\' Z6'cal

Machine attachment: 1 3/8\' Z6'cal

Telescopic connector type: Pipe triangular

Minimum length: 860mm

Maximum length: 1200mm

Clutch: Wide-angle

Bearing diameter: 27mm

Height of the cross member: 74.6mm

Works with: External fork - WR227301, Cross fork - WR219301, External pipe fork - WR219306, Wide angle joint - WR212290, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR22931129

Torque: 460Nm

Operating angle: Max 35° temporarily 80°

Inner tube wall thickness: 4.5mm

Outer tube wall thickness: 3.4mm

Clutch disconnecting moment: None

Packing by:: 1

Inner tube thickness:: 36mm

Thickness of the outer tube:: 43.5mm

Nominal power:: 26 (35)KW (HP)

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
