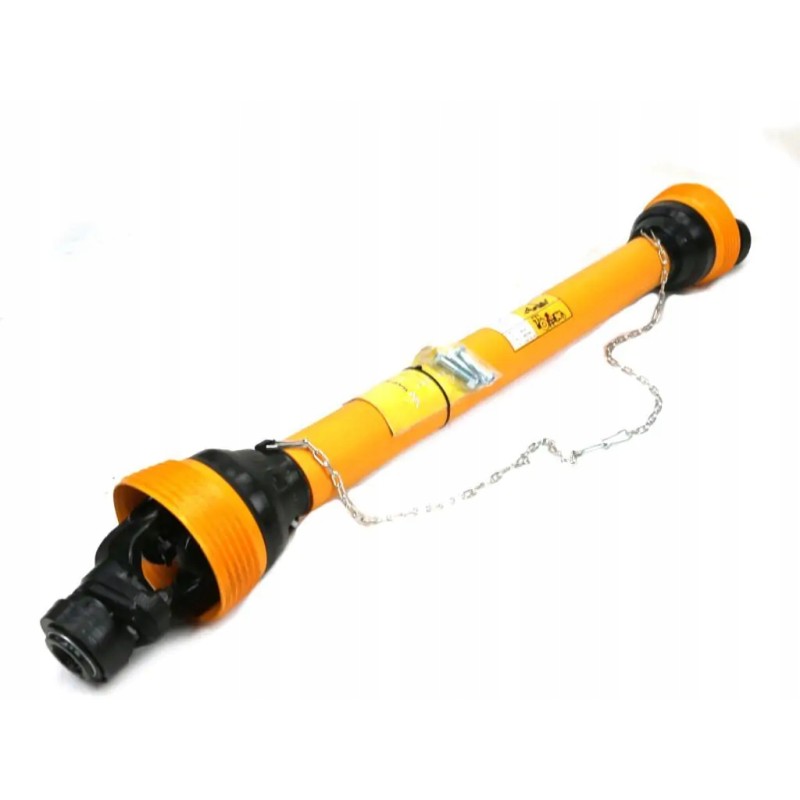

Articulated and telescopic shaft 1010 1560mm 830nm coupling

PTO shaft 1010-1560mm 830Nm clutch with pin Z21 2500 Nm CE 2020 series 6R Waryński Index W6B1721010Clutch: Clutch with pin

Maximum length: 1475

Minimum length: 1010

Inner tube thickness: 45

Outer tube thickness: 54

Nominal power: 47 ( 64 )

Mounting to the machine: 1 3/8 ' Z21'

Attachment to tractor: 1 3/8' Z6'

Torque: 830

Operating angle: Max 17°

Bearing diameter: 30.2

Cross height: 91.6

Telescopic connector type: Triangular pipe

Works with: External fork -WR227601, WR227602 , Krzyżak - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, Outer pipe - WR2362885, Housing - WR22961129,

Wall thickness of the inner pipe: 5.5

Wall thickness of the outer pipe : 4

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: clutch with a pin

Maximum length: 1475mm

Minimum length: 1010mm

Inner tube thickness: 45mm

Outer tube thickness: 54mm

< p/>Nominal power: 47 ( 64 )KW (HP)

Mounting to the machine: 1 3/8' Z21'cal

Mounting to the tractor: 1 3/8' Z6 'inch

Torque: 830Nm

Operating angle: Max 17°

Bearing diameter: 30.2mm

Shoulder height: 91 .6mm

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227601, WR227602, Cross connector - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, Outer pipe - WR2362885, Housing - WR22961129,

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness : 4mm

EAN 5902287227246
