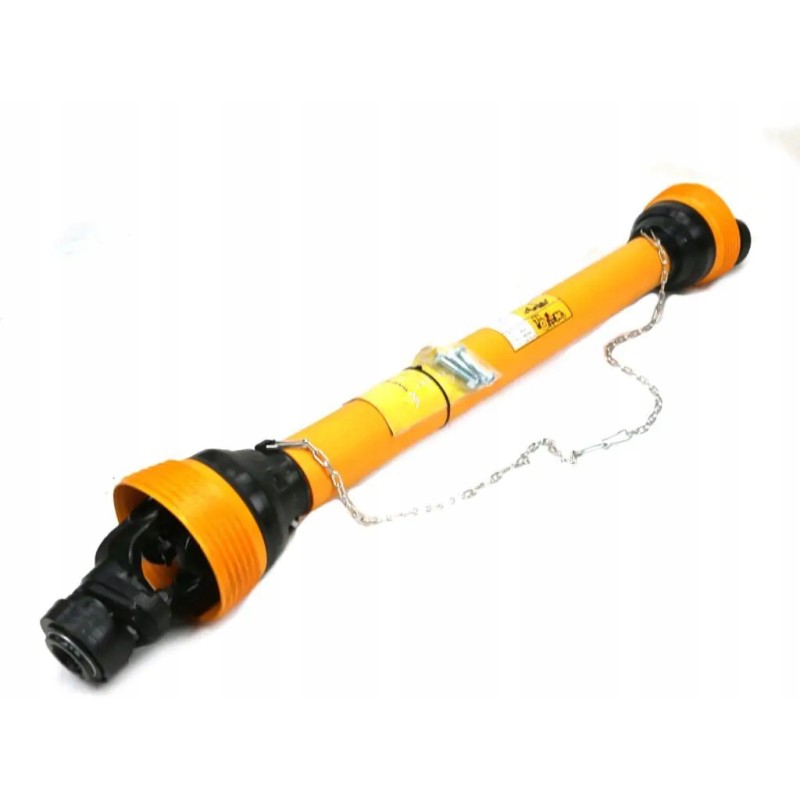

Articulated and telescopic shaft 860 1190mm 620nm coupling

PTO shaft 860-1190mm 620Nm clutch with pin Z21 2200 Nm CE 2020 5R series Waryński Index W5B172860Clutch: Clutch with pin

Maximum length: 1190

Minimum length: 860

Thickness of the inner tube: 45

Thickness of the outer tube: 51.5

Nominal power: 35 ( 47 )

Mounting to the machine: 1 3 /8' Z21'

Attachment to tractor: 1 3/8' Z6'

Torque: 620

Operating angle: Max 17°

Bearing diameter: 30.2

Cross height: 79.4

Telescopic connector type: Triangular tube

Works with: External fork -WR227501 , WR227502, Krzyżak - WR219501, Fork internal pipe. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR2343705, Outer pipe - WR2342735, Housing - WR21951129,

Inner pipe wall thickness: 3.8

Outer pipe wall thickness : 3

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: clutch with a pin

Maximum length: 1190mm

Minimum length: 860mm

Inner tube thickness: 45mm

Outer tube thickness: 51.5mm

Nominal power: 35 ( 47 )KW (HP)

Mounting to the machine: 1 3/8' Z21'cal

Mounting to the tractor: 1 3/8 ' Z6'cal

Torque: 620Nm

Operating angle: Max 17°

Bearing diameter: 30.2mm

Height of the cross : 79.4mm

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227501, WR227502, Cross connector - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR2343705, Outer pipe - WR2342735, Housing - WR21951129,

Inner pipe wall thickness: 3.8mm

Outer pipe wall thickness : 3mm

EAN 5902287227178
