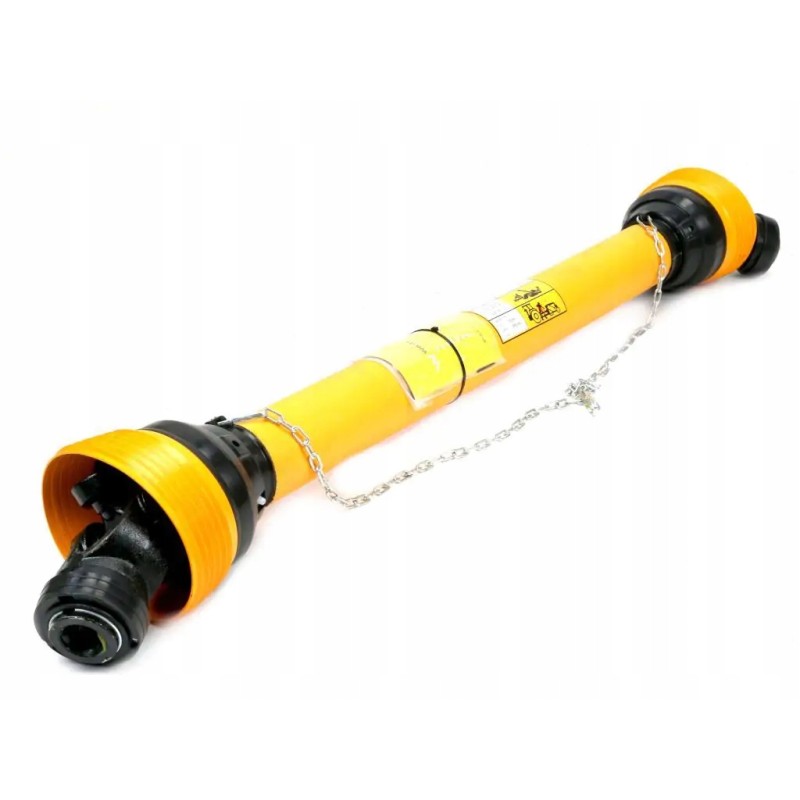

Articulated and telescopic shaft 860 1250mm 830nm z21 ce

PTO shaft 860-1250mm 830Nm Z21 CE 2020 series 6R Waryński Index W6B1B2860Clutch: None

Maximum length: 1250

Minimum length: 860

Inner pipe thickness : 45

Thickness of the outer tube: 54

Nominal power: 47 ( 64 )

Mounting to the machine: 1 3/8' Z21'

< p/>Attachment to tractor: 1 3/8' Z6'

Torque: 830

Operating angle: Max 17°

Bearing diameter: 30, 2

Height of the cross: 91.6

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227601, WR227602, Cross - WR219601, Pipe fork ext. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363705, Outer pipe - WR2362735, Housing - WR22961129,

Inner pipe wall thickness: 5.5

Outer pipe wall thickness : 4

Clutch disconnecting moment: None

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: None

Maximum length: 1250mm

Minimum length: 860mm

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Nominal power: 47 ( 64 )KW (HP)

Mounting to the machine: 1 3/8' Z21'cal

Mounting to the tractor: 1 3/8' Z6'cal

Torque: 830Nm

Working angle: Max 17°

Bearing diameter: 30.2mm

Square height: 91.6mm

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227601, WR227602, Cross connector - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363705, Outer pipe - WR2362735, Housing - WR22961129,

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness : 4mm

Clutch disengaging torque: None

EAN 5902287227277
