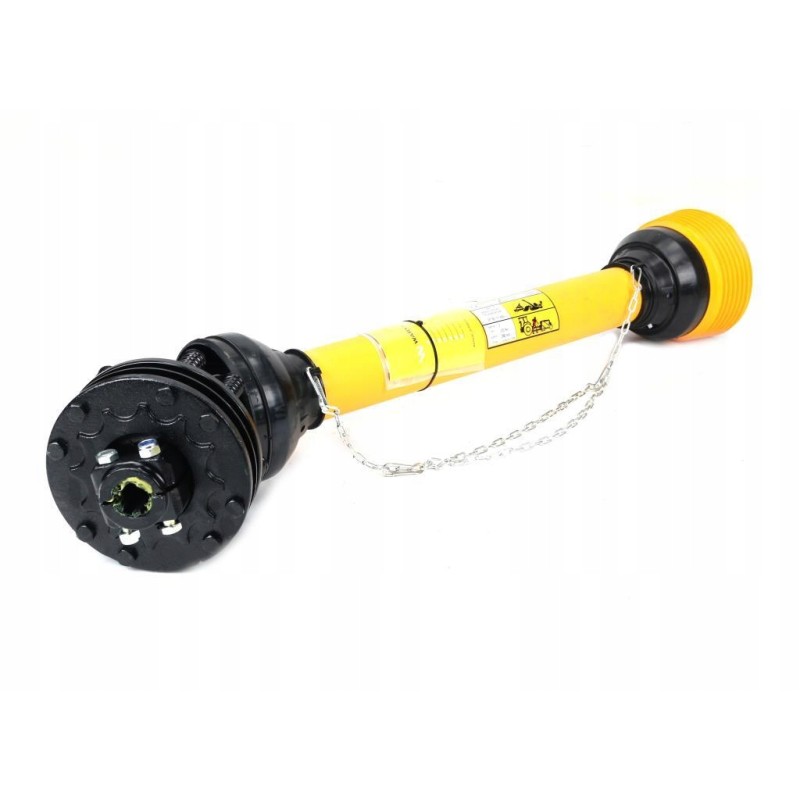

Articulated and telescopic shaft 1010 1450mm 540nm

PTO shaft 1010-1450mm 540Nm friction clutch 900Nm CE 2020 4R series Waryński EAN: 5902287212044

SKU: W452B11010

All products on our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Mounting to the tractor: 1 3/8' Z6cal Mounting to the machine:1 3/8' Z6cal Type of telescopic connector:Triangular tube Minimum length:1010mm Maximum length:1450mm Nominal power:30 ( 41 )KW (HP) Clutch:Friction Inner tube thickness:36mm Tube thickness external: 43.5 mm Bearing diameter: 27 mm Cross height: 74.6 mm Works with: External fork - WR227401, WR274101, Cross - WR219401, Internal pipe fork. - WR219407, Outer pipe fork - WR219406, Inner pipe - WR2343855, Outer pipe - WR2342885, Coupling - WR213450, Housing - WR22941129 Clutch disconnecting power:900 Nm Torque:540Nm Operating angle: Max. 17° Pipe wall thickness internal y:4, 5mm Outer tube wall thickness:3.4mm Packing per::1

Tractor mounting: 1 3/8' Z6cal

Machine mounting: 1 3/8' Z6cal

Type of telescopic connector: Triangular pipe

Minimum length: 1010mm

Maximum length: 1450mm

Nominal power: 30 ( 41 )KW (HP) )

Clutch: Friction

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

Bearing diameter: 27mm

Height of the cross: 74.6mm

Works with: External fork - WR227401, WR274101, Cross fork - WR219401, Internal pipe fork. - WR219407, Outer pipe fork - WR219406, Inner pipe - WR2343855, Outer pipe - WR2342885, Clutch - WR213450, Housing - WR22941129

Clutch disengaging power: 900 Nm

Torque: 540Nm

Working angle: Max 17°

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

Packing after:: 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
