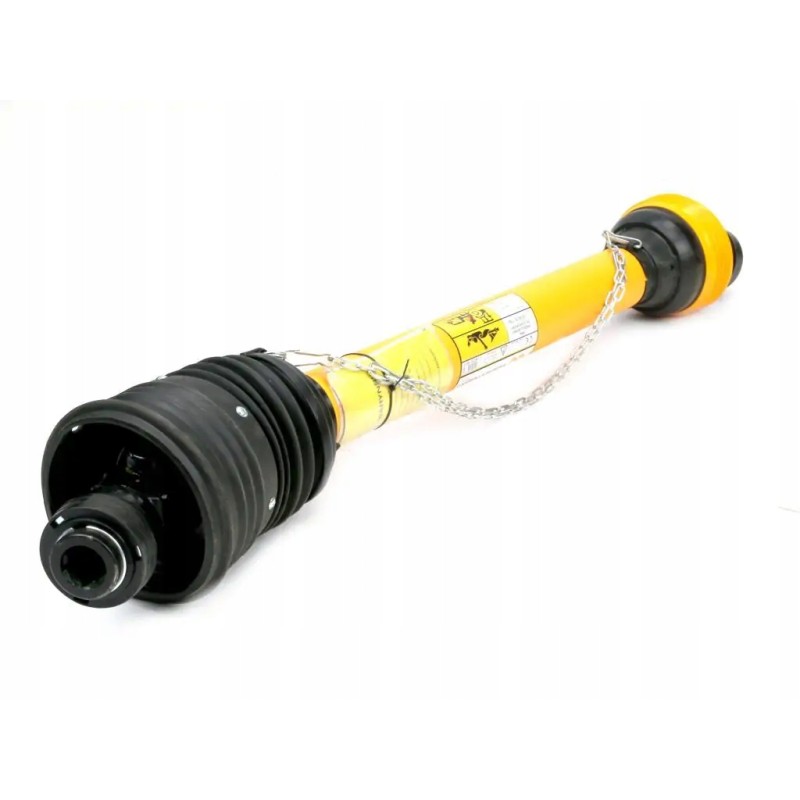

Articulated and telescopic shaft 760 1150mm 540nm wide

PTO shaft 760-1150mm 540Nm wide-angle CE 2020 series 4R Waryński Index W490B1760Clutch: wide-angle

Minimum length: 760

Inner pipe thickness: 36

Pipe thickness external: 43.5

Nominal power: 30 ( 41 )

Mounting to the machine: 1 3/8' Z6'

Mounting to the tractor: 1 3 /8' Z6'

Torque: 540

Operating angle: Max 35° temporarily 80°

Bearing diameter: 27

Cross head height: 74.6

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227401, WR216390, Cross connector - WR219401, Internal pipe fork. - WR219407, Outer pipe fork - WR219406, Inner pipe - WR2343605, Outer pipe - WR2342635, Housing - WR22941129,

Inner pipe wall thickness: 4.5

Outer pipe wall thickness : 3.4

Clutch disconnecting torque: None

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Wide-angle

Minimum length: 760mm

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

Nominal power: 30 ( 41 )KW ( HP )

Machine attachment: 1 3/8' Z6'inch

Tractor attachment: 1 3/8' Z6'inch

Torque : 540Nm

Working angle: Max 35° temporarily 80°

Bearing diameter: 27mm

Shoulder height: 74.6mm

Type telescopic connector: Triangular pipe

Works with: External fork - WR227401, WR216390, Krzyżak - WR219401, Internal pipe fork. - WR219407, Outer pipe fork - WR219406, Inner pipe - WR2343605, Outer pipe - WR2342635, Housing - WR22941129,

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness : 3.4mm

Clutch disengaging moment: None

EAN 5902287227154

Waryński
