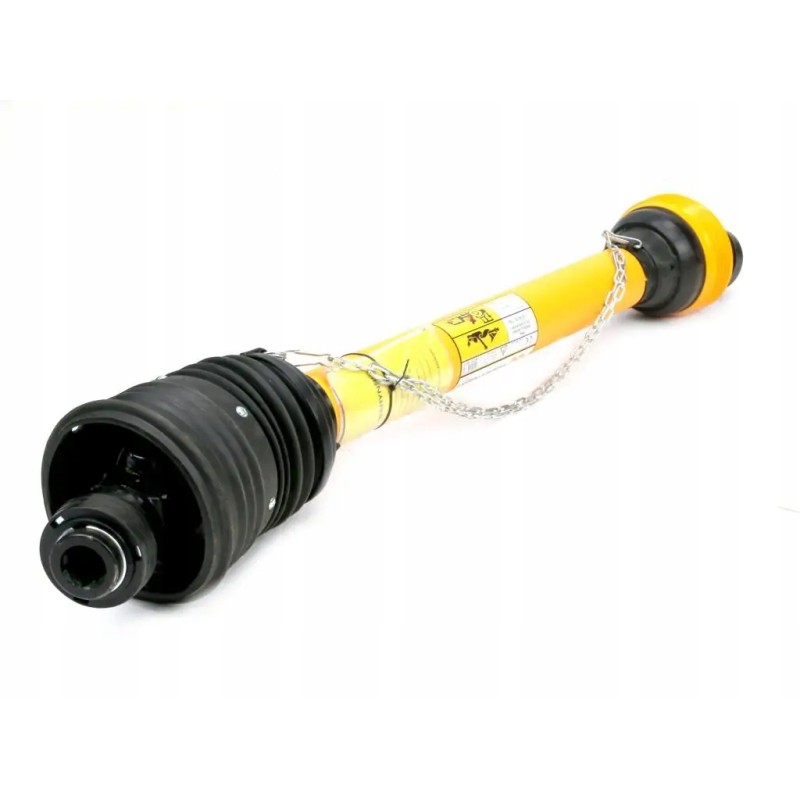

Articulated and telescopic shaft 1210 1710 mm 540 nm wide

PTO shaft 1210-1710mm 540Nm wide-angle CE 2020 4R series Waryński Index W490B11210Clutch: wide-angle

Maximum length: 1710

Minimum length: 1210

Inner tube thickness : 36

Thickness of the outer tube: 43.5

Nominal power: 30 ( 41 )

Mounting to the machine: 1 3/8' Z6'

Attachment to tractor: 1 3/8' Z6'

Torque: 540

Operating angle: Max 35° temporarily 80°

Bearing diameter: 27

Height of cross: 74.6

Type of telescopic connector: Triangular tube

Works with: External fork - WR227301, WR216390, Cross - WR219301 , Internal pipe fork. - WR219307, Inner pipe - WR23231055, Outer pipe - WR23221085, Housing - WR22941129,

Inner pipe wall thickness: 4.5

Outer pipe wall thickness: 3.4

Clutch disconnecting torque: None

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Wide-angle

Maximum length: 1710mm

Minimum length: 1210mm

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

< p/>Nominal power: 30 ( 41 )KW (HP)

Mounting to the machine: 1 3/8' Z6'cal

Mounting to the tractor: 1 3/8' Z6 'inch

Torque: 540Nm

Operating angle: Max 35° temporarily 80°

Bearing diameter: 27mm

Shoulder height: 74.6mm

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227301, WR216390, Cross connector - WR219301, Internal pipe fork. - WR219307, Inner pipe - WR23231055, Outer pipe - WR23221085, Housing - WR22941129,

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

Clutch disengaging torque: None

EAN 5902287227130
