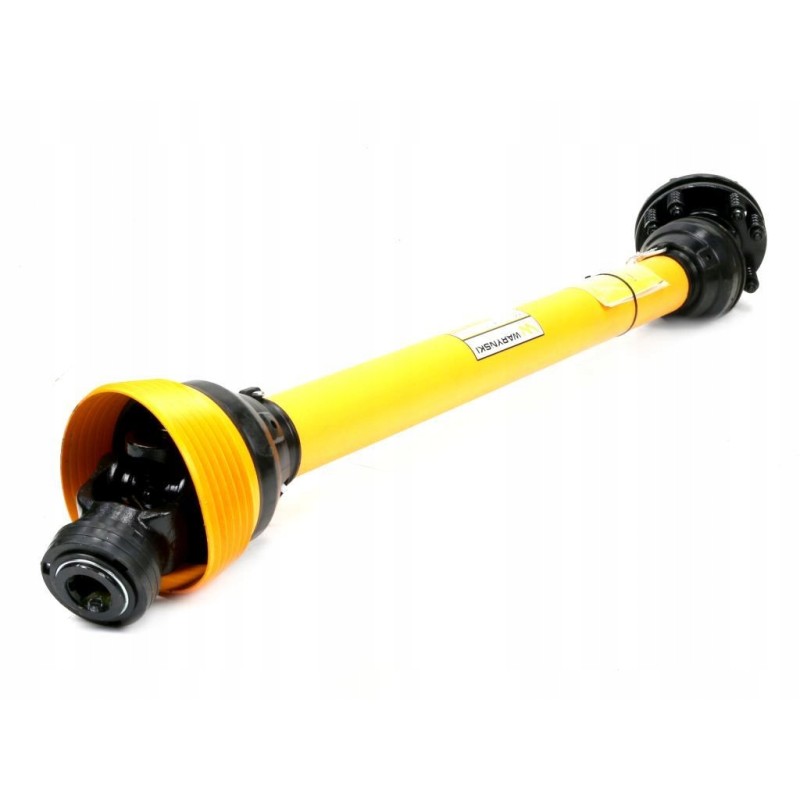

Articulated and telescopic shaft 860 1250mm 830nm

PTO shaft 860-1250mm 830Nm friction clutch 1200Nm Z21 CE 2020 series 6R Waryński EAN: 5902287204810

SKU: W6B162860

All products on our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: friction clutch Thickness inner tube:45mm Outer tube thickness:54mm Nominal power:47 ( 64 )KW (HP) Mounting to the machine:1 3/8' Z21' inch Mounting to the tractor:1 3/8' Z6' inch Torque:830Nm Working angle :Max 17° Bearing diameter:30.2mm Cross height:91.6mm Telescopic connector type:Triangular tube Minimum length:860mm Maximum length:1250mm Works with:External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363705, WR2140600 Outer pipe - WR2362735, WR2141600 Housing - WR22961129, Clutch breaking power: 1200Nm Inner pipe wall thickness: 5.5mm Pipe wall thickness outer y:4mm Packing by::1

Tractor Attachment: 1 3/8' Z6' inch

Machine Attachment: 1 3/8' Z21' inch

Telescopic Connector Type: Pipe triangular

Minimum length: 860mm

Maximum length: 1250mm

Nominal power: 47 ( 64 )KW (HP)

Clutch: Friction clutch

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Bearing diameter: 30.2mm

Cross height: 91 ,6mm

Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363705, WR2140600 Outer pipe - WR2362735, WR2141600 Housing - WR22961129,

Clutch disengaging power: 1200Nm

Torque: 830Nm< p>

Working angle: Max 17°

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

Packing after: : 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
