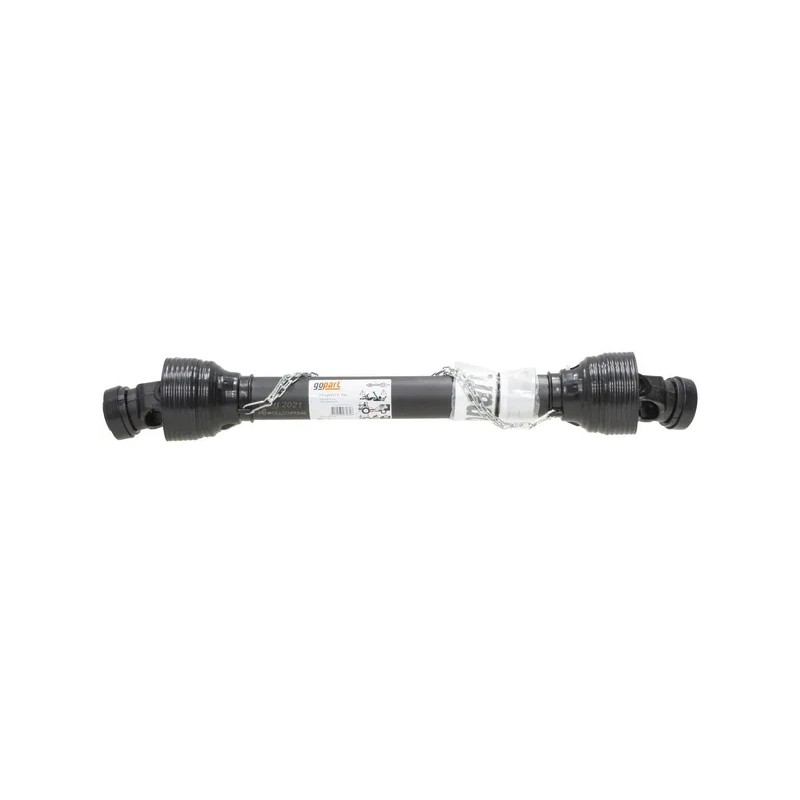

Articulated shaft pto 20 l 1210 mm gopart

PTO shaft 20 L=1210 mm gopart

Part number: K. PTO20Y21T1210Y30GP

EAN: 8719493067750

Unit: Piece

Specifications : Good price-quality ratio

Application:

Wood splitter

Field sprayer

Sowers of artificial fertilizers

Properties:

Meets all international safety requirements

CE marked

Technical information:

Max. dynamic power 540 rpm. /min: 15 kW, 265 Nm

Max. dynamic power 1000 rpm: 23 kW, 220 Nm

Benefits: A favorable alternative in the low performance range

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Diameter external connection from the machine side: 30mm

Internal diameter. connection on the machine side: 30mm

Number of keys on the machine side connection: 1

Diameter tolerance of the connection on the machine side: H8

Connection type on the machine side: Screw clamping (non-tangential)

Machine side accessories: Clamping yoke

Shaft size: PTO 20

Power at 540 rpm: 15kW

Power at 1000 rpm: 23kW

Diameter of the bush on the tractor side: 23.8mm

Length of the cross on the tractor side: 61.3mm

Diameter of the cross sleeve on the machine side: 23.8mm

Length of the cross on the machine side: 61.3mm

Coupling type: n/a

Outer pipe wall thickness : 3.4mm

Larger outer diameter of the outer tube: 43.5mm

Wall thickness of the inner tube: 3.2mm

Larger external diameter of the inner tube: 36mm

Tube profile shape: Triangular

Dynamic torque max.: 450N m
