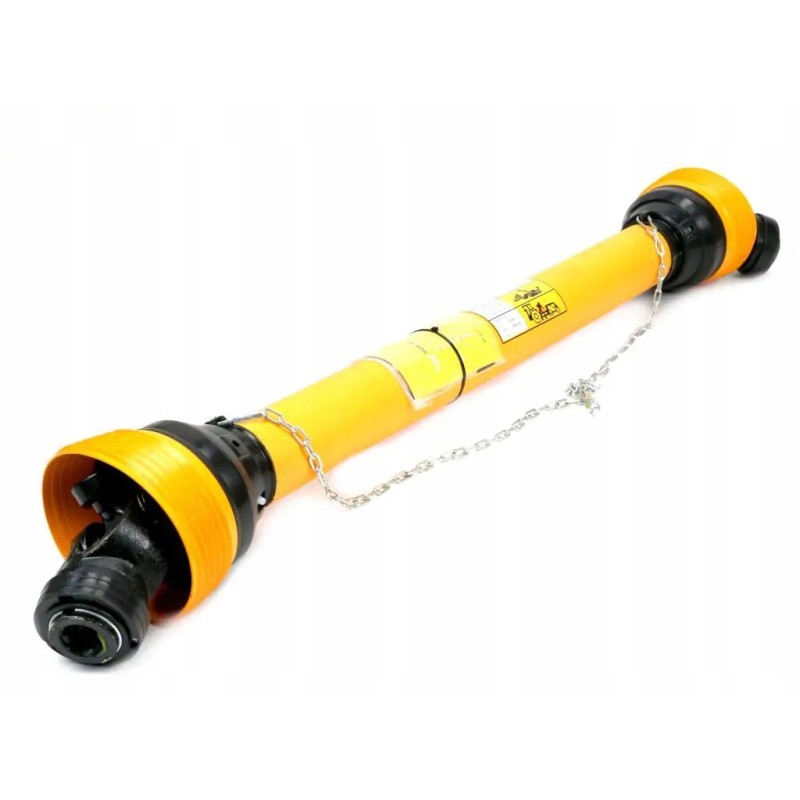

Articulated and telescopic shaft 1010 1560mm 830nm 32x38

PTO shaft 1010-1560mm 830Nm 32X38 Z8 CE 2020 series 6R Waryński Index W6B6B11010Clutch: None

Maximum length: 1560

Minimum length: 1010

Pipe thickness internal: 45

Outer tube thickness: 54

Nominal power: 47 ( 64 )

Mounting to the machine: 1 3/8' Z6 '

Attachment to tractor: 32X38 Z8

Torque: 830

Operating angle: Max 17°

Bearing diameter: 30.2

Height of the cross: 91.6

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, WR2140600, Outer pipe - WR2362885, WR2141600, Housing - WR22961129,

Inner pipe wall thickness: 5.5

Outer tube wall thickness: 4

Clutch disconnecting power: None

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: None

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Nominal power: 47 ( 64 )KW (HP)

Mounting to the machine : 1 3/8' Z6 'inch

Attachment to tractor: 32X38 Z8

Torque: 830Nm

Operating angle: Max 17°

< p/>Bearing diameter: 30.2mm

Cross height: 91.6mm

Telescopic connector type: Triangular tube

Minimum length: 1010mm

< p/>Maximum length: 1560mm

Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, WR2140600, Outer pipe - WR2362885, WR2141600, Housing - WR22961129,

Clutch disconnecting power: NoneNm

Pipe wall thickness y internal: 5.5mm

Outer pipe wall thickness: 4mm

EAN 5902287204896
