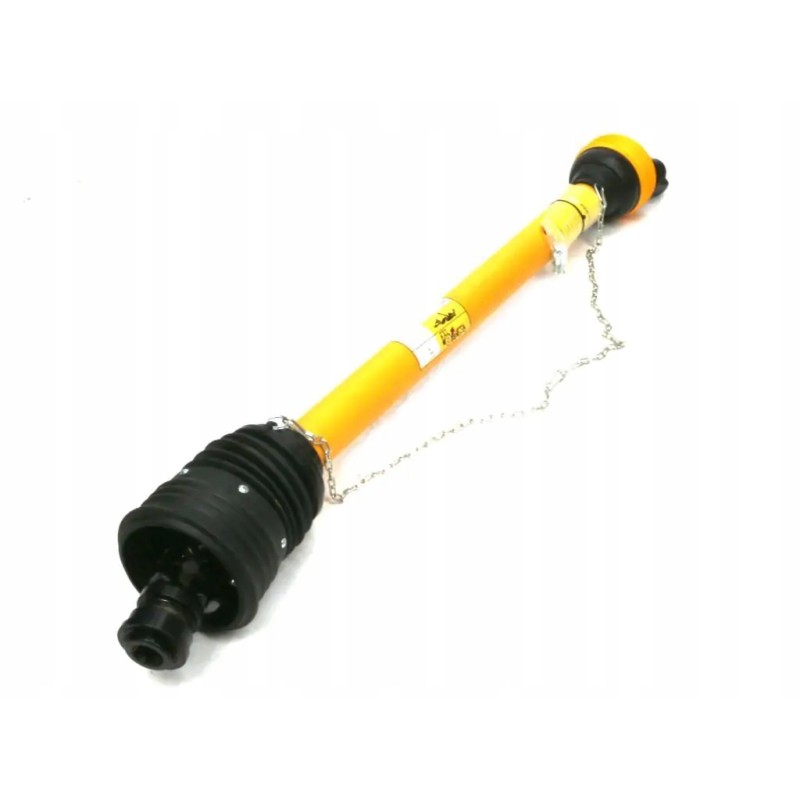

Articulated and telescopic shaft 860 1050mm 540nm wide

PTO shaft 860-1050mm 540Nm wide-angle dr. st. clutch with pin 1900 Nm CE 2020 series 4R Waryński Index W49071860 Clutch: clutch with pin, wide angle

Maximum length: 1050

Minimum length: 860

Thickness inner tube: 36

Outer tube thickness: 43.5

Nominal power: 30 ( 41 )

Mounting to the machine: 1 3/8' Z6'

Attachment to tractor: 1 3/8' Z6'

Torque: 540

Operating angle: Max 35° temporarily 80°

Bearing diameter: 27

Cross height: 74.6

Telescopic connector type: Triangular tube

Works with: External fork - WR214471, WR216390, Cross - WR219301, Internal pipe fork. - WR219307, Inner pipe - WR2323705, Outer pipe - WR2322735, Coupling - WR214373, Housing - WR22941129

Inner pipe wall thickness: 4.5

Outer pipe wall thickness: 3.4

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Clutch with a pin , wide-angle

Maximum length: 1050mm

Minimum length: 860mm

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

Nominal power: 30 ( 41 )KW (HP)

Mounting to the machine: 1 3/8' Z6'cal

Mounting to the tractor: 1 3 /8' Z6'cal

Torque: 540Nm

Operating angle: Max 35° temporarily 80°

Bearing diameter: 27mm

Height of the cross: 74.6mm

Type of telescopic connector: Triangular pipe

Works with: External fork - WR214471, WR216390, Cross fork - WR219301, Internal pipe fork. - WR219307, Inner pipe - WR2323705, Outer pipe - WR2322735, Coupling - WR214373, Housing - WR22941129

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

EAN 5902287227161
