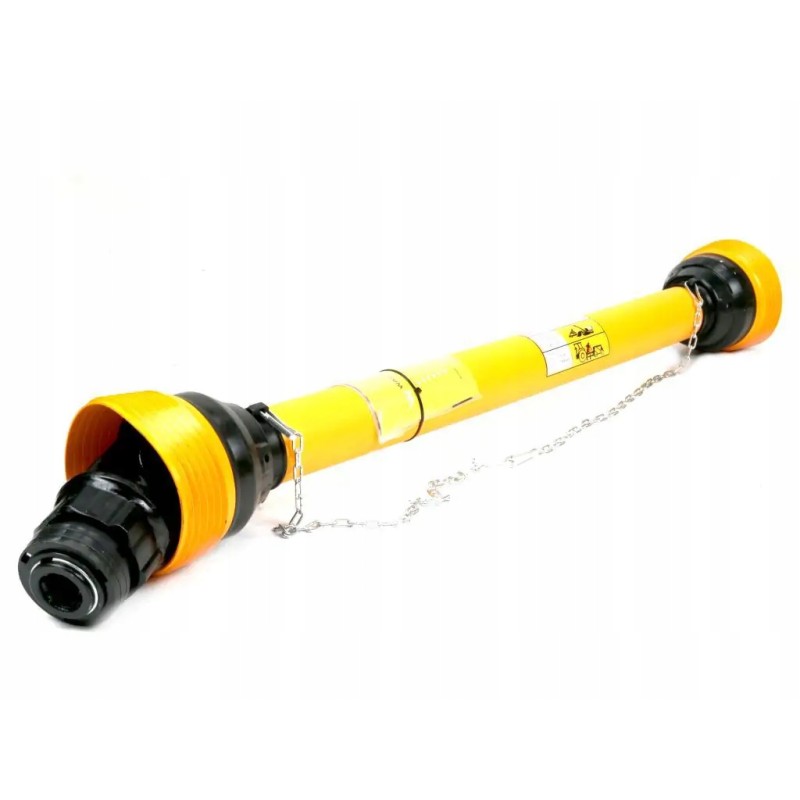

Articulated and telescopic shaft 1660 2390mm 1890nm coupling

PTO shaft 1660-2390mm 1890Nm one-way clutch CE 2020 series 9R Waryński Index W9B1101660 Clutch: One-way clutch

Maximum length: 2390

Minimum length: 1660

Inner pipe thickness: 54

Outer pipe thickness: 63

Nominal power : 106 ( 145 )

Mounting to the machine: 1 3/8' Z6

Mounting to the tractor: 1 3/8' Z6

Torque: 1890

Working angle: Max 35° temporarily 80°

Bearing diameter: 41

Height of the cross: 118

Type of connector telescopic: Triangular pipe

Works with: External pipe fork - WR227901, Cross fork - WR219901, External pipe fork - WR219906, Internal pipe fork. - WR219907, Inner pipe - WR23831055, Outer pipe - WR23821090, Housing - WR21991129, Coupling -

Inner pipe wall thickness: 5

Outer pipe wall thickness: 4

Clutch disconnecting power: None

Shaft made according to the new PN-EN-12965_2020 Standard . Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Attachment to the tractor: 1 3/8' Z6cal

Attachment to the machine: 1 3/8' Z6cal

Type of telescopic connector: Triangular tube

Minimum length: 1660 mm

Maximum length: 2390 mm

Nominal power: 106 ( 145 )KW (HP)

Clutch: One-way clutch

Inner pipe thickness: 54mm

Outer pipe thickness: 63mm

Bearing diameter: 41mm

Cross height: 118mm

Works with: External fork - WR227901, Cross fork - WR219901, Outer pipe fork - WR219906, Inner pipe fork . - WR219907, Inner pipe - WR23831055, Outer pipe - WR23821090, Housing - WR21991129, Clutch -

Clutch disengaging power: None

Torque: 1890Nm

Working angle: Max 35° temporarily 80°

Inner pipe wall thickness: 5mm

Wall thickness outer tube: 4mm

EAN 5902287212174

Waryński

All products available in our store are new and unused.

Despite every effort, we do not guarantee that the published photos, technical data and descriptions do not contain omissions or errors.

If you have any doubts about the quality of the products received or possible discrepancies in appearance, please report it to us in an Allegro message. We will certainly make every effort to verify the problem and solve it, and above all, dispel your doubts.
