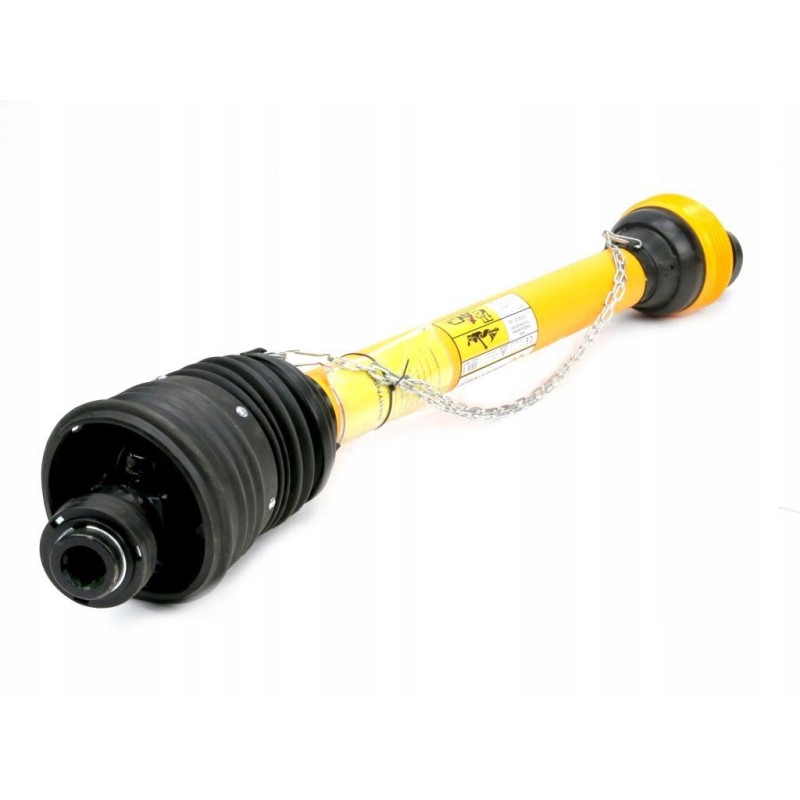

Articulated and telescopic shaft 510 720mm 460nm

PTO shaft 510-720mm 460Nm wide-angle from the machine stand CE 2020 3R series WARYŃSKI EAN: 5902287198249

SKU: W3B190510

All products on our auctions are new and from proven manufacturers< p>

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Wide-angle Disengaging torque clutch:None Packing per::1 Maximum length:720mm Minimum length:510mm Nominal power:26 ( 35 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6' inch Torque:460Nm Bearing diameter:27mm Cross height:74.6mm Inner tube thickness::36mm Outer tube thickness::43.5mm Inner tube wall thickness:4.5mm Outer tube wall thickness:3.4mm Clutch disengaging power:None Type of telescopic connector: Triangular pipe Works with: External fork - WR227301, Cross connector - WR219301, Internal pipe fork. - WR219307, Wide angle joint - WR212290, Inner pipe - WR2323355, Outer pipe - WR2322385, Housing - WR22931129 Working angle: Max 35° temporarily 80°

Mounting to the tractor: 1 3/8' Z6'inch< p>

Mounting to the machine: 1 3/8' Z6' inch

Telescopic connector type: Triangular tube

Minimum length: 510mm

Length maximum: 720mm

Nominal power: 26 ( 35 )KW (HP)

Clutch: Wide angle

Bearing diameter: 27mm

Height cross: 74.6mm

Works with: external pipe fork - WR227301, cross fork - WR219301, internal pipe fork. - WR219307, Wide angle joint - WR212290, Inner pipe - WR2323355, Outer pipe - WR2322385, Housing - WR22931129

Clutch disengaging power: None

Torque: 460Nm

Working angle: Max 35° temporarily 80°

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

Clutch disconnecting torque : None

Packing by:: 1

Inner tube thickness:: 36mm

Outer tube thickness:: 43.5mm

Photos The information included in the auction is for illustrative purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
