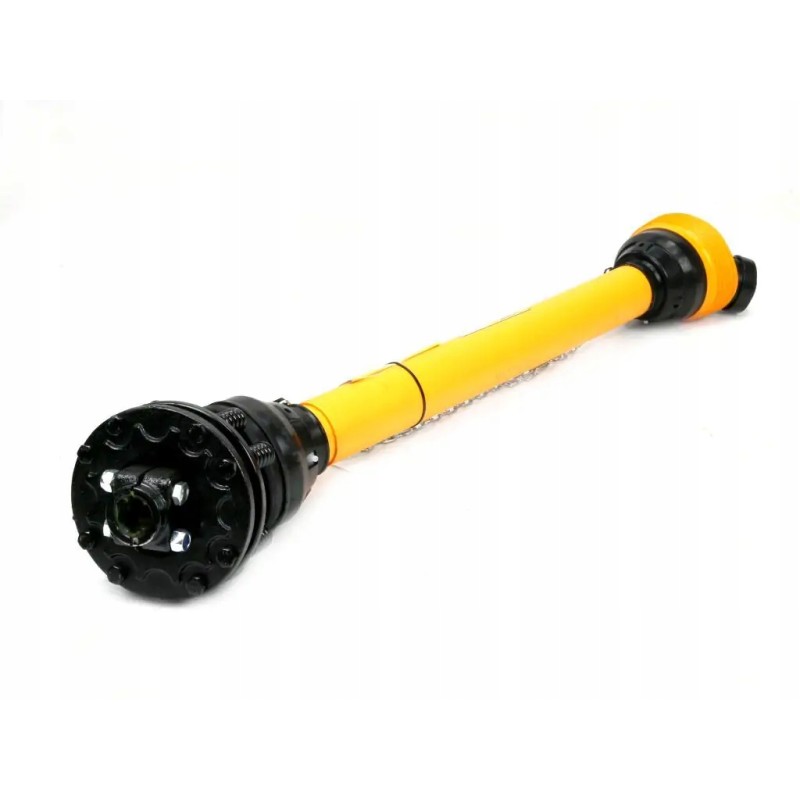

Articulated and telescopic shaft 660 1000mm 540nm coupling

PTO shaft 660-1000mm 540Nm friction clutch 900Nm CE 2020 4R series Waryński Index W452B1660Clutch: Friction

Maximum length: 1000

Minimum length: 660

Thickness inner tube: 36

Outer tube thickness: 43.5

Nominal power: 30 ( 41 )

Mounting to the machine: 1 3/8' Z6< p>

Attachment to tractor: 1 3/8' Z6

Torque: 540

Operating angle: Max 17°

Bearing diameter: 27

Height of the cross: 74.6

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227401, WR274101, Cross fork - WR219401, Pipe fork ext. - WR219407, Outer pipe fork - WR219406, Inner pipe - WR2343505, Outer pipe - WR2342535, Coupling - WR213450, Housing - WR22941129

Inner pipe wall thickness: 4.5

Thickness outer pipe walls: 3.4

Clutch disconnecting power: 900 Nm

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Mounting to the tractor: 1 3/8' Z6cal

Mounting to the machine: 1 3/8' Z6cal

Telescopic connector type: Triangular tube

Minimum length: 660mm

< p/>Maximum length: 1000mm

Nominal power: 30 ( 41 )KW (HP)

Clutch: Friction

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

Bearing diameter: 27mm

Cross height: 74.6mm

Works with: External fork - WR227401, WR274101, Krzyżak - WR219401, Internal pipe fork. - WR219407, Outer pipe fork - WR219406, Inner pipe - WR2343505, Outer pipe - WR2342535, Clutch - WR213450, Housing - WR22941129

Clutch disengaging power: 900 Nm

Torque: 540Nm

Working angle: Max 17°

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

EAN 5902287212068
