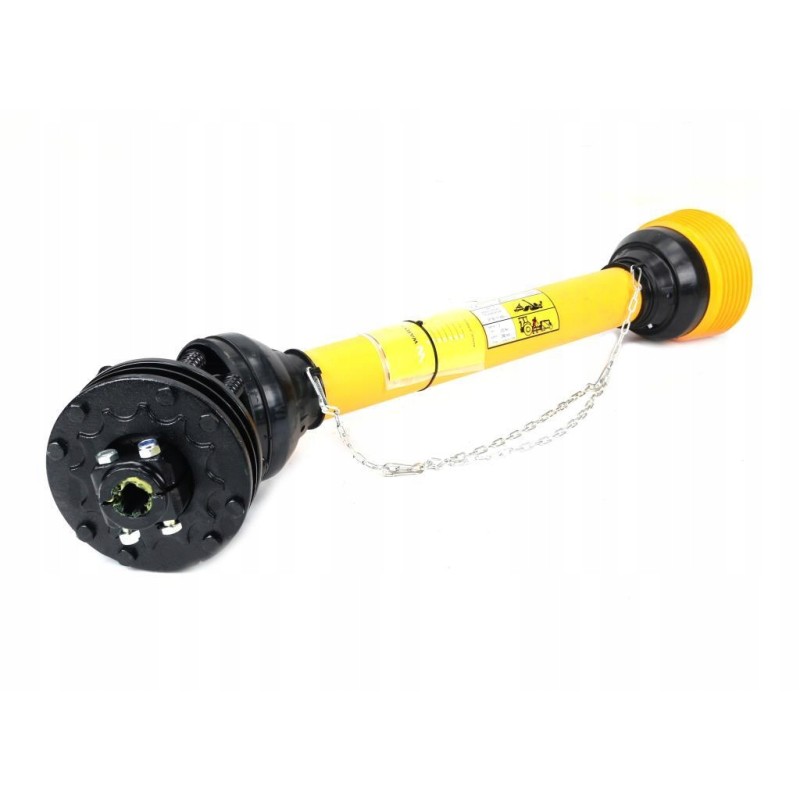

Articulated and telescopic shaft 1010 1560mm 970nm z21 7

PTO shaft 1010-1560mm 970Nm Z21 on the other side clutch with pin 2200Nm CE 2020 7R series Waryński EAN: 5902287204971

SKU: W7B2711010

All products on our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Mounting to the tractor: 1 3/8' Z21cal Mounting to the machine:1 3/8' Z6inch Type of telescopic connector:Triangular tube Minimum length:1010mm Maximum length:1560mm Nominal power:55 ( 75 )KW (HP) Coupling:Coupling with pin Inner tube thickness:45mm Outer pipe thickness: 54mm Bearing diameter: 30.2mm Cross height: 106mm Works with: External fork - WR227701, Cross fork - WR219701, Internal pipe fork. - WR219707, Outer pipe fork - WR219706, Inner pipe - WR2140600, WR2363855, Outer pipe - WR2141600, WR2362885, Housing - WR21971129, Clutch -WR214771 Clutch disengaging power:2200Nm Torque:9 70Nm Working angle: Max 17° Inner pipe wall thickness :5.5mm Outer tube wall thickness:4mm Packing per::1

Tractor mounting: 1 3/8' Z21cal

Machine mounting: 1 3/8' Z6cal< p>

Type of telescopic connector: Triangular pipe

Minimum length: 1010mm

Maximum length: 1560mm

Nominal power: 55 ( 75 )KW ( KM )

Clutch: Clutch with pin

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Bearing diameter: 30, 2mm

Height of the cross: 106mm

Works with: External fork - WR227701, Cross fork - WR219701, Internal pipe fork. - WR219707, Outer pipe fork - WR219706, Inner pipe - WR2140600, WR2363855, Outer pipe - WR2141600, WR2362885, Housing - WR21971129, Clutch -WR214771

Clutch disengaging power: 220 0Nm

Torque: 970Nm

Working angle: Max 17°

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

Packing after:: 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
