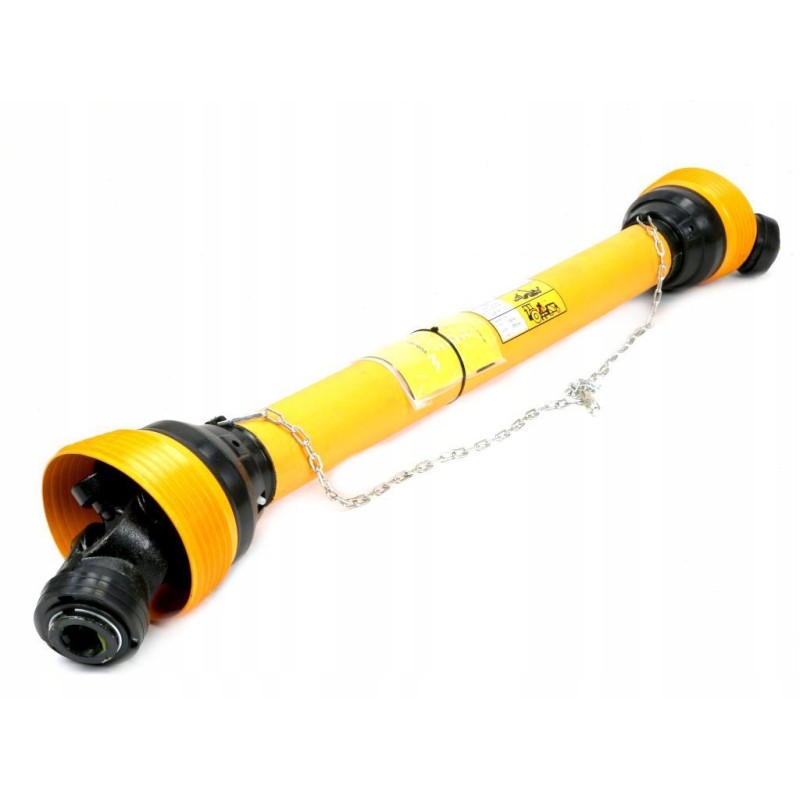

Articulated and telescopic shaft 1010 1560mm 830nm 32x38

PTO shaft 1010-1560mm 830Nm 32X38 Z8 CE 2020 series 6R Waryński EAN: 5902287204896

SKU: W6B6B11010

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Coupling: None Inner pipe thickness: 45 mm Outer pipe thickness :54mm Nominal power:47 ( 64 )KW (HP) Mounting to the machine:1 3/8' Z6' inch Mounting to the tractor:32X38 Z8 Torque:830Nm Working angle:Max 17° Bearing diameter:30.2mm Cross height: 91.6mm Type of telescopic connector:Triangular pipe Minimum length:1010mm Maximum length:1560mm Works with:External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, WR2140600, Outer pipe - WR2362885, WR2141600, Housing - WR22961129, Clutch breaking power:NoneNm Inner pipe wall thickness:5.5mm Pipe wall thickness outer:4mm Packing by: :1

Attachment to the tractor: 32X38 Z8

Attachment to the machine: 1 3/8' Z6 'inch

Type of telescopic connector: Triangular tube

Minimum length: 1010mm

Maximum length: 1560mm

Nominal power: 47 ( 64 )KW (HP) )

Clutch: None

Inner pipe thickness: 45mm

Outer pipe thickness: 54mm

Bearing diameter: 30.2mm

Cross head height: 91.6mm

Works with: External fork - WR227601, Cross fork - WR219601, Inner pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, WR2140600, Outer pipe - WR2362885, WR2141600, Housing - WR22961129,

Clutch disengaging power: NoneNm

Torque: 830Nm

Operating angle: Max 17°

Pipe wall thickness inner tube: 5.5 mm

Outer tube wall thickness: 4 mm

Packing per: 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
