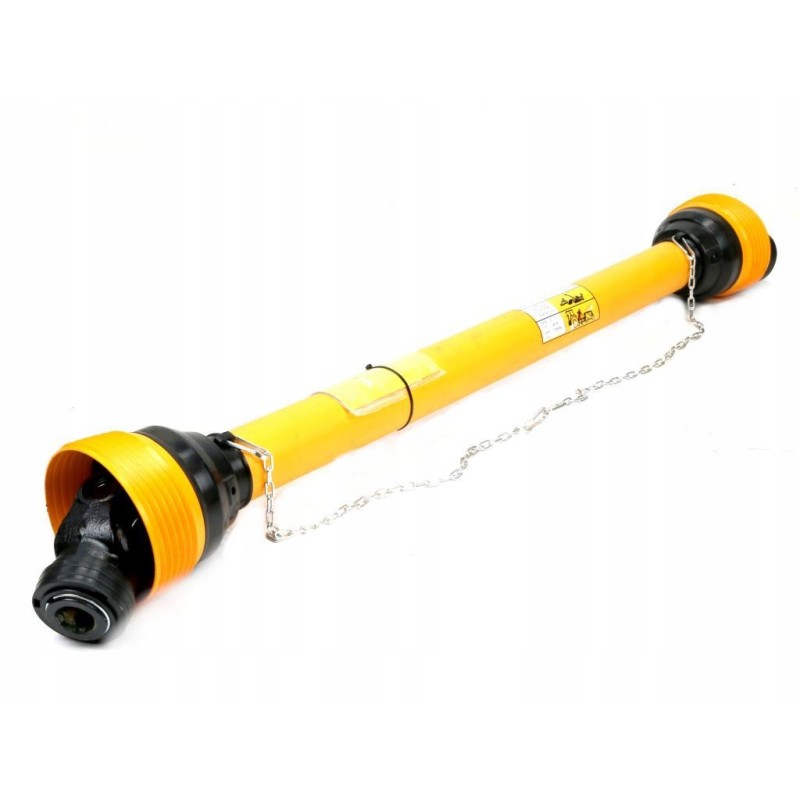

Articulated and telescopic shaft 1210 1650mm 620nm

PTO shaft 1210-1650mm 620Nm fork Z21 60270 CE 2020 series 5R WARYŃSKI EAN: 5902287198911

SKU: W5B2B11210

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Packing in: 1 Maximum length: 2050 mm Minimum length :1210mm Nominal power:35 ( 47 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z21'inch Torque:620Nm Bearing diameter:30.2mm Cross height: 79.4mm Thickness of the inner pipe::45mm Thickness of the outer pipe::51.5mm Thickness of the wall of the inner pipe:3.8mm Thickness of the wall of the outer pipe:3mm Coupling opening torque:None Type of telescopic connector:Triangular pipe Clutch:None Works with:External fork -WR227501, WR227502, Krzyżak - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR23431055, Outer pipe - WR23421090, Housing - WR21951129, Working angle: Max 17°

Attachment to the tractor: 1 3/8' Z21' inch

Attachment to the machine: 1 3 /8' Z6'inch

Type of telescopic connector: Triangular pipe

Minimum length: 1210 mm

Maximum length: 2050 mm

Nominal power: 35 ( 47 )KW ( HP )

Coupling: None

Bearing diameter: 30.2 mm

Cross height: 79.4mm

Works with: External fork - WR227501, WR227502, Krzyżak - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR23431055, Outer pipe - WR23421090, Housing - WR21951129,

Torque: 620Nm

Working angle: Max 17°

Inner pipe wall thickness: 3.8 mm

Outer pipe wall thickness : 3mm

Clutch disengaging torque: None

Packing by:: 1

Inner tube thickness:: 45mm

Outer tube thickness:: 51.5mm

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
