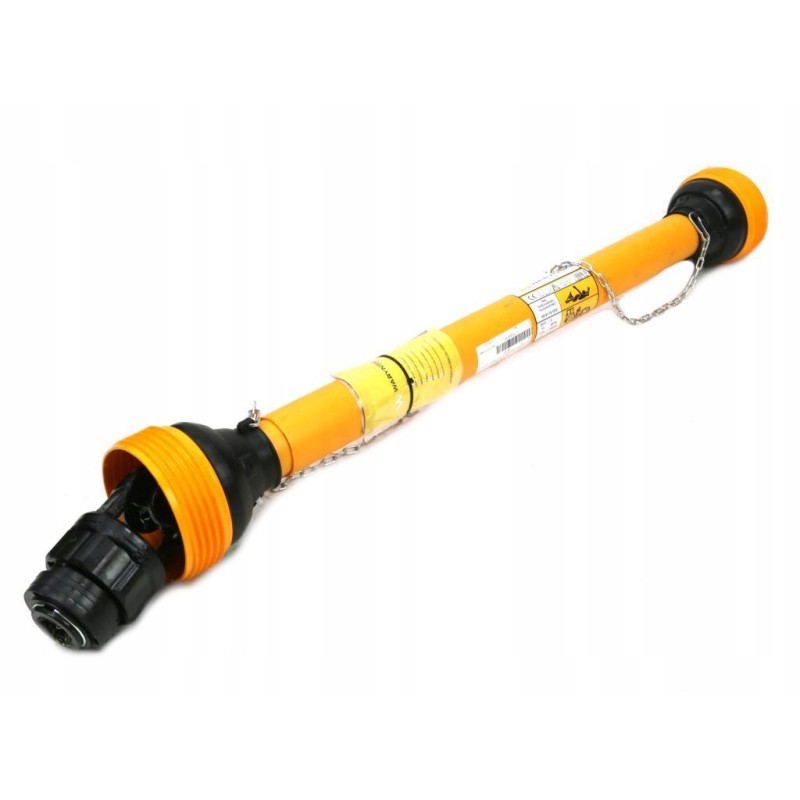

Articulated and telescopic shaft 860 1250mm 460nm

PTO shaft 860-1250mm 460Nm one-way clutch CE 2020 3R series WARYŃSKI EAN: 5902287198508

SKU: W3B110860

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: One-way Clutch opening torque: None Packing by: :1 Maximum length:1250mm Minimum length:860mm Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque:460Nm Bearing diameter:27mm Cross height:74.6mm Pipe thickness internal::36mm Thickness of the outer pipe::43.5mm Thickness of the wall of the inner pipe:4.5mm Thickness of the wall of the outer pipe:3.4mm Nominal power::26 ( 35 )KW (HP) Type of telescopic connector:Triangular pipe Works with:Fork external - WR227301, Cross connector - WR219301, Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR21931129 Working angle: Max 17°

Attachment to the tractor: 1 3/8' Z6' inch

Attachment to the machine: 1 3/ 8' Z6'inch

Type of telescopic connector: Triangular pipe

Minimum length: 860 mm

Maximum length: 1250 mm

Clutch: One-way

Bearing diameter: 27 mm

Cross height: 74.6 mm

Works with: External fork - WR227301, Cross - WR219301 , Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR21931129

Torque: 460Nm

Working angle: Max 17°

Inner pipe wall thickness: 4.5 mm

Outer pipe wall thickness: 3.4mm

Clutch disengaging torque: None

Packing by:: 1

Inner tube thickness:: 36mm

Outer tube thickness:: 43.5mm

Nominal power:: 26 (35)KW (HP)

The photos included in the auction are illustrative, the actual appearance of the product may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
