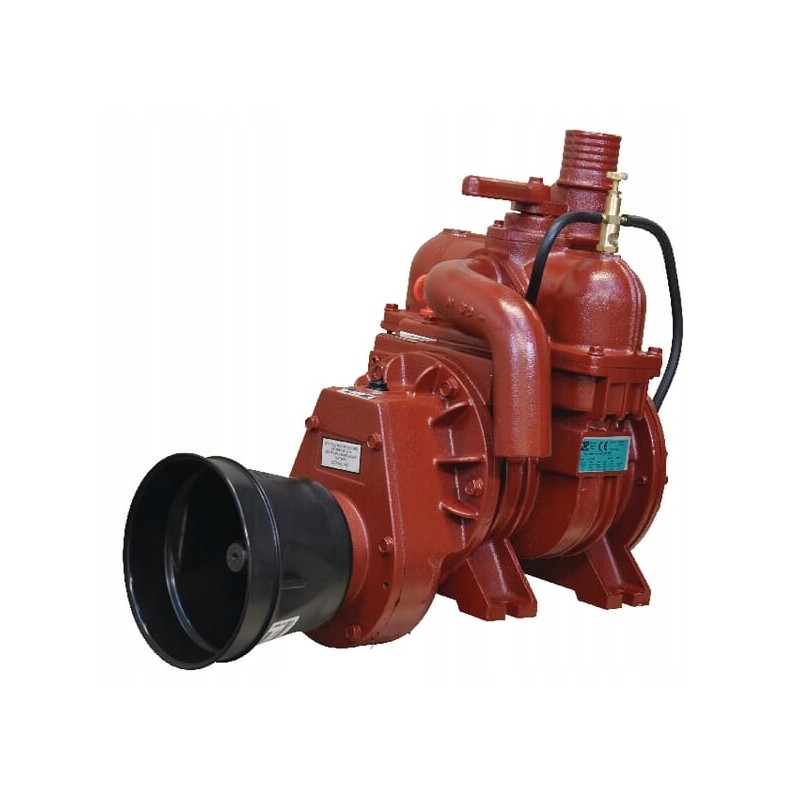

Vacuum pump standard bp

Standard vacuum pump BP

Part number: MEC3000M

EAN:

Unit: Art

Specifications:

Each pump is subjected to a final inspection at the factory, during which, among others, the following are checked: vacuum, sealing and lubrication

An inspection report is created for each pump based on the serial number

Application: These types of vane vacuum pumps are mainly used in agriculture for filling and emptying slurry tanks

Features:

These pumps can produce both overpressure and underpressure

Oil to be used to lubricate the blades: original BP oil Article number: BP5070

Technical information:

Structure of article numbers: MEC = series, 8000 = type, M = intermediate drive 540 rpm, A = automatic lubrication

For pumps without automatic lubrication (without "A" in the article number), the pump is equipped with forced, adjustable lubrication via drip nozzle

In the case of a pump with automatic lubrication, the lubricating oil quantity is factory set and cannot be changed without tools

In the case of forced lubrication, e.g. automatic lubrication, this function must be monitored at all times during operation

Indirect drive pumps (M) must be driven counterclockwise

The direction of rotation is determined when the driven axle is directed towards the person looking at it

In the case of a direct drive of the pump (e.g. by means of a draft machine), it must be driven counterclockwise

Benefits: Because BP pumps are carefully tested, inspected and packaged, 100% reliable startup is guaranteed

Nominal flow: 3600l/min Drive type: PTO 540 rpm Direction of rotation: Counterclockwise Ballast air injection system: No

It consists of:

These pumps are supplied with standard vanes (Heavy duty vanes available on request)

Without overpressure and vacuum valve

Pumps are supplied without lubricating oil (BP5070)

Propshaft cover included

Lubrication system type: Forced

Blade type: Standard

Damage protection system: No

Vacuum max.: 0.9BAR Relative pressure max.: 1.5BAR Power consumption at max. pressure: 14kW Power consumption at vacuum: max.: 7kW Hose connection diameter: 60mm Safety valve connection diameter: 1-1/4 inch Total length: 540mm

Total width: 342mm

Height: 557mm

Diameter of mounting holes: 15mm Spacing of mounting holes:

172mm

227mm

Distance of mounting holes to the end of the shaft: 240mm Distance of mounting holes to end: 94mm Distance from the center of the shaft to the end: 164mm Distance from the shaft axis to the extreme right edge: 178mm Shaft diameter: 1-3/8 inch Maximum shaft revolutions: 600 rpm Weight: 87kg
