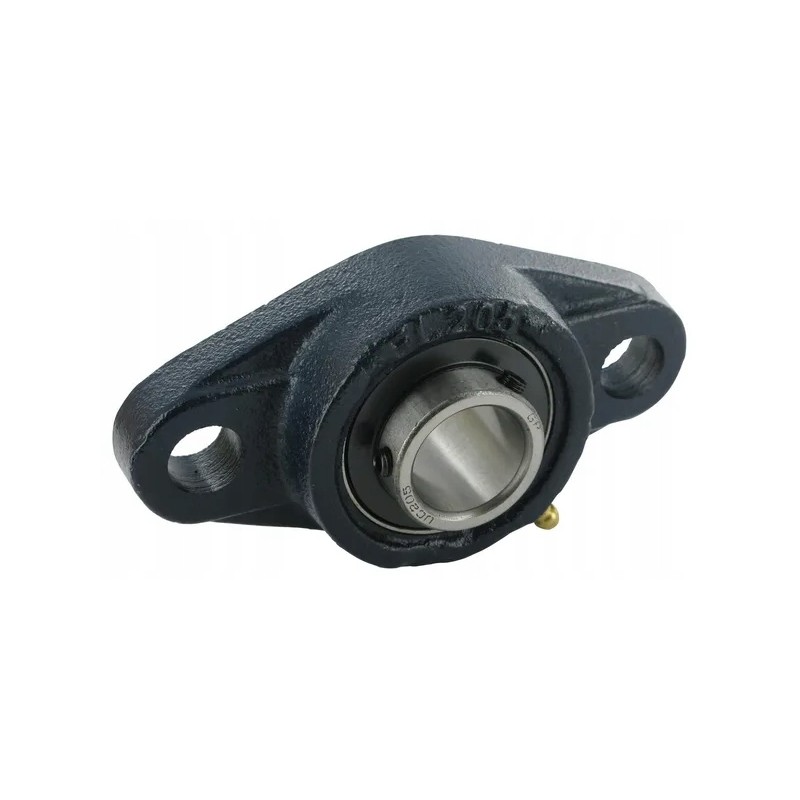

Bearing with 2-hole housing complete

Bearing with 2-hole housing, complete

Part number: K.UCFL206GP

EAN: 8716106031542

Unit: Art

Product Description: Gopart oval housing self-aligning ball bearing units come pre-assembled and pre-lubricated. Thanks to this, they can be installed quickly. Self-aligning spherical ball bearing outer ring with wide inner ring compensates for shaft misalignment.Show more

Advantages:

Perfect for limited installation spaces

Assembled, ready to use

Product details:

The inner bearing has an extended inner ring on both sides with 2 adjustment screws

Greasable

Self-aligning ball bearing

Ball bearing with wide inner ring

Note: color may differ from that shown in the photo

Contains:

Bearing housing

Bearing

Grease nipple

Housing type: Oval flange

dInner bearing diameter: 30mm

aTotal length: 148mm

bHousing width: 80mm

Total height: 40.2mm

lCasing height: 31mm

BiBearing inner ring width: 38.1mm

Position of the bearing balls relative to the end of the shaft/shaft: 18mm

iPosition of the bearing balls relative to the mounting surface: 15.9mm

Spacing of mounting holes: 117mm Diameter of mounting holes: 16mm

The product fits the machines:

Landini Series 4 4-090, 4-095, 4-100, 4-105, 4-110

Series 4 Small Range 4-060, 4-070, 4-075, 4-080

Series 5-D Tier 4 100 (2013), 100 (2013), 100 (2013), 100 (2013), 100 (2013), 5D100 Tier 4 (2013-), 5D110 Tier 4 (2013-), 5D90, 5D100 Tier 4 (2013-), 5D110 Tier 4 (2013-), 5D90

Series 5-H 100H, 100H, 100H, 100H, 100H, 110H, 110H, 110H, 110H, 110H, 115H, 115H, 115H, 115H, 115H, 80H, 80H (2009), 90H, 90H (2009) ), 80H, 80H (2009), 90H, 90H, 90H (2009), 90H (2009)

Series 5-H T4i 5-H 100H (2009-), 5-H 110H (2009-), 5-H 115H (2009-), 5-H Tier 4 100 (2013-), 5-H Tier 4 110 ( 2013-), 5-H Tier 4 115 (2013-), 5-H Tier 4 90 (2013-), 5-H Tier 4i 5-090H (2014-), 5-H Tier 4i 5-100H (2014- ), 5-H Tier 4i 5-110H (2014-), 5-H Tier 4i 5-115H (2014-), 5-H 100H (2009-), 5-H 110H (2009-), 5-H 115H (2009-), 5-H Tier 4 100 (2013-), 5-H Tier 4 110 (2013-), 5-H Tier 4 115 (2013-), 5-H Tier 4 90 (2013-), 5 -H Tier 4i 5-090H (2014-), 5-H Tier 4i 5-100H (2014-), 5-H Tier 4i 5-110H (2014-), 5-H Tier 4i 5-115H (2014-)

Series 6C Tier4 6C Tier 4 (2014-) 6.130C, 6C Tier 4 (2014-) 6.130C

Series Powerfarm Meccanicco Tier 3 110 (2013), 110 (2013), 110 (2013), 110 (2013), 110 (2013)

Series Rex Tier 2 90 (2013), 90 (2013), 90 (2013)

Series Ghibli Ghibli 105 (2004-2006), Ghibli 85 (2004-2006), Ghibli 95 (2004-2006)

Series Globalfarm Globalfarm 100 (2007-), Globalfarm 105 (2007-), Globalfarm 90 (2007-), Globalfarm 95 (2007-)

Series Globalfarm Tier 3 Globalfarm 100 Tier 3 (2011-2015), Globalfarm 105 Tier 3 (2011-2015), Globalfarm 80 Tier 3 (2011-2015), Globalfarm 90 Tier 3 (2011-2015)
