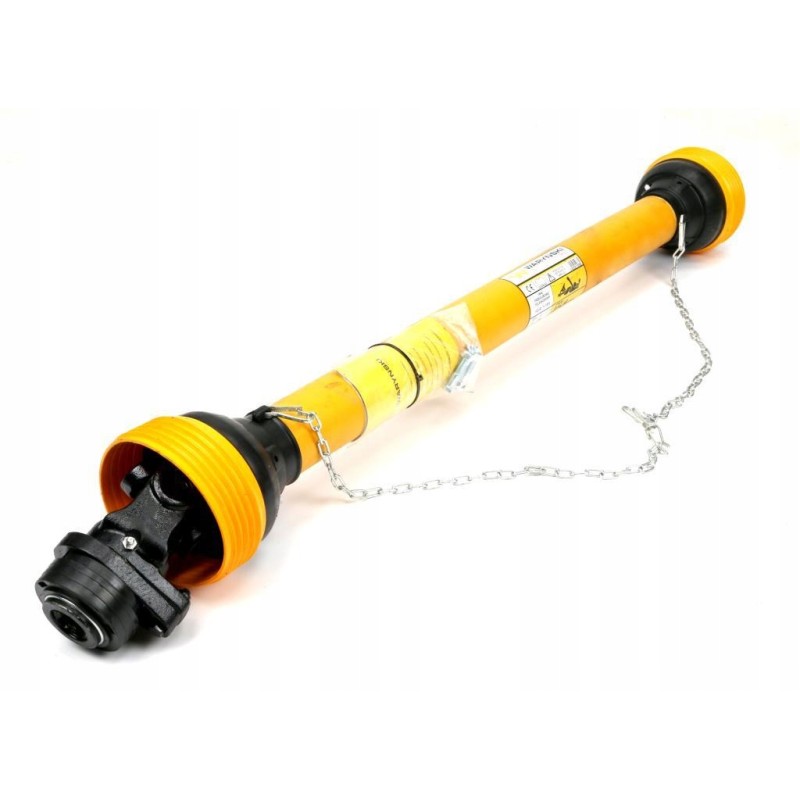

Articulated and telescopic shaft 860 1250mm 460nm

PTO shaft 860-1250mm 460Nm clutch with pin 1400Nm CE 2020 3R series WARYŃSKI EAN: 5902287198515

SKU: W3B171860

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Clutch with pin Packing in:: 1 Length maximum:1250mm Minimum length:860mm Nominal power:26 (35)KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque:460Nm Bearing diameter:27mm Cross height:74.6mm Thickness of the inner pipe::36mm Thickness of the outer pipe::43.5mm Thickness of the wall of the inner pipe:4.5mm Thickness of the wall of the outer pipe:3.4mm Coupling disconnecting moment:1700Nm Type of telescopic connector:Triangular pipe Works with: External fork - WR227301, Cross connector - WR219301, Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR21931129 Working angle: Max 17°

Attachment to the tractor: 1 3/8' Z6' inch

Attachment to the machine: 1 3/ 8' Z6'inch

Type of telescopic connector: Triangular pipe

Minimum length: 860 mm

Maximum length: 1250 mm

Nominal power: 26 ( 35 )KW ( HP )

Coupling: Coupling with pin

Bearing diameter: 27 mm

Cross height: 74 .6mm

Works with: External fork - WR227301, Cross connector - WR219301, Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR21931129

Torque: 460Nm

Working angle: Max 17°

Inner pipe wall thickness: 4.5 mm

Outer pipe wall thickness: 3.4mm

Clutch disconnecting torque: 1700Nm

Packing in:: 1

Thickness of the inner pipe:: 36mm

Thickness of the outer pipe:: 43.5mm

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
