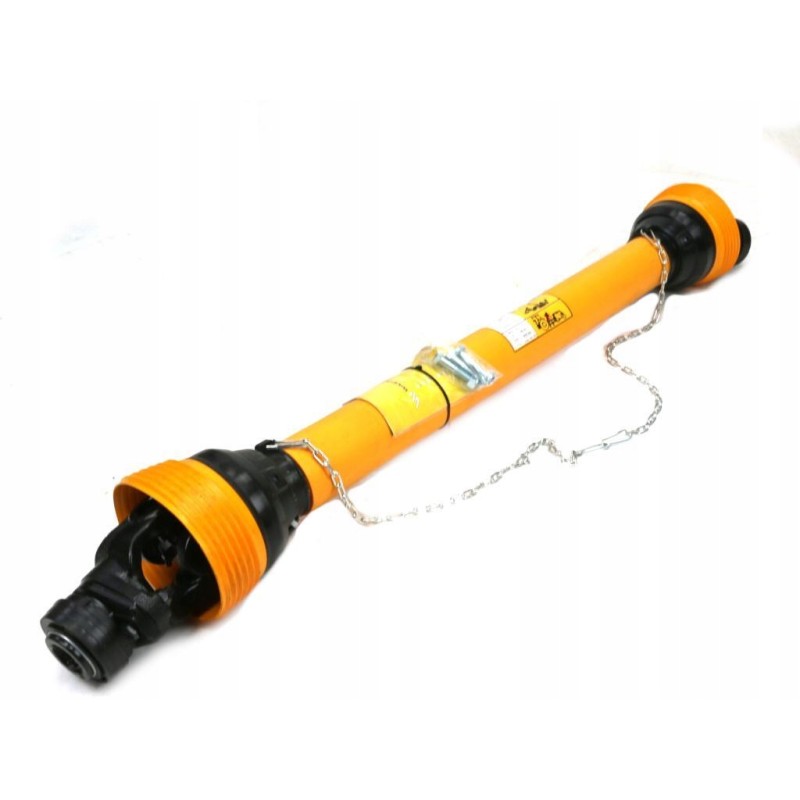

Articulated and telescopic shaft 1010 1560mm 830nm

PTO shaft 1010-1560mm 830Nm clutch with pin Z21 2500Nm CE 2020 series 6R Waryński EAN: 5902287227246

SKU: W6B1721010

All products on our auctions are new and from proven manufacturers

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: clutch with a pin Maximum length:1475mm Minimum length:1010mm Inner tube thickness:45mm Outer tube thickness:54mm Nominal power:47 ( 64 )KW (HP) Mounting to the machine:1 3/8' Z21' inch Mounting to the tractor:1 3/8' Z6'inch Torque: 830Nm Working angle: Max 17° Bearing diameter: 30.2mm Cross height: 91.6mm Telescopic connector type: Triangular tube Works with: External fork - WR227601, WR227602, Cross - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, Outer pipe - WR2362885, Housing - WR22961129, Inner pipe wall thickness:5.5mm Outer pipe wall thickness:4mm Packing per::1 Inner pipe thickness::45mm Thickness outer pipe::54mm Clutch disengaging torque:2500Nm

Mounting to the tractor: 1 3/8' Z6'cal

Mounting to the machine: 1 3/8' Z21'cal

Type of telescopic connector: Triangular pipe

Minimum length: 1010mm

Maximum length: 1475mm

Nominal power: 47 ( 64 )KW (HP) )

Clutch: Coupling with pin

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Bearing diameter: 30.2mm

Height of the cross: 91.6mm

Works with: External fork - WR227601, WR227602, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, Outer pipe - WR2362885, Housing - WR22961129,

Torque: 830Nm

Working angle: Max 17°

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

Packing by:: 1

Inner pipe thickness:: 45mm

Outer tube thickness: 54mm

Clutch disconnecting moment: 2500Nm

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
