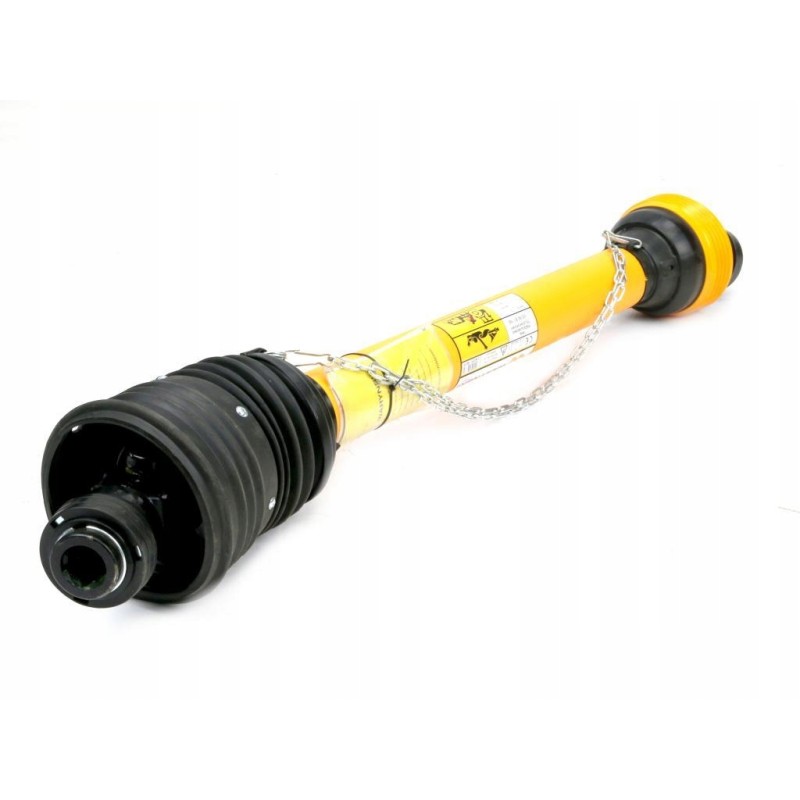

Articulated and telescopic shaft 1010 1410mm 540nm

PTO shaft 1010-1410mm 540Nm wide-angle CE 2020 series 4R Waryński EAN: 5902287227116

SKU: W490B11010

All products at our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Wide-angle Maximum length :1410mm Minimum length:1010mm Inner tube thickness:36mm Outer tube thickness:43.5mm Nominal power:30 ( 41 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque: 540Nm Working angle: Max 35° temporarily 80° Bearing diameter: 27mm Cross height: 74.6mm Telescopic connector type: Triangular pipe Works with: External fork - WR227301, WR216390, Cross fork - WR219301, Internal pipe fork. - WR219307, Inner pipe - WR2323855, Outer pipe - WR2322885, Housing - WR22941129, Inner pipe wall thickness:4.5mm Outer pipe wall thickness:3.4mm Clutch disengaging torque:None Packing per::1 Inner pipe thickness::36mm Thickness outer tube::43.5mm Clutch disengaging power:None

Tractor attachment: 1 3/8' Z6'inch

Machine attachment: 1 3/8' Z6'inch

Type of telescopic connector: Triangular pipe

Minimum length: 1010mm

Maximum length: 1410mm

Nominal power: 30 ( 41 )KW ( KM )

Clutch: Wide angle

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

Bearing diameter: 27mm

Height of the cross: 74.6mm

Works with: External fork - WR227301, WR216390, Cross fork - WR219301, Internal pipe fork. - WR219307, Inner pipe - WR2323855, Outer pipe - WR2322885, Housing - WR22941129,

Clutch disengaging power: None

Torque: 540Nm

Operating angle: Max 35° temporarily 80°

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

Clutch disconnecting torque: None

Packing by:: 1

Thickness of the inner tube:: 36mm

Thickness of the outer tube:: 43.5mm

The photos included in the auction are illustrative, the actual appearance of the product may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
