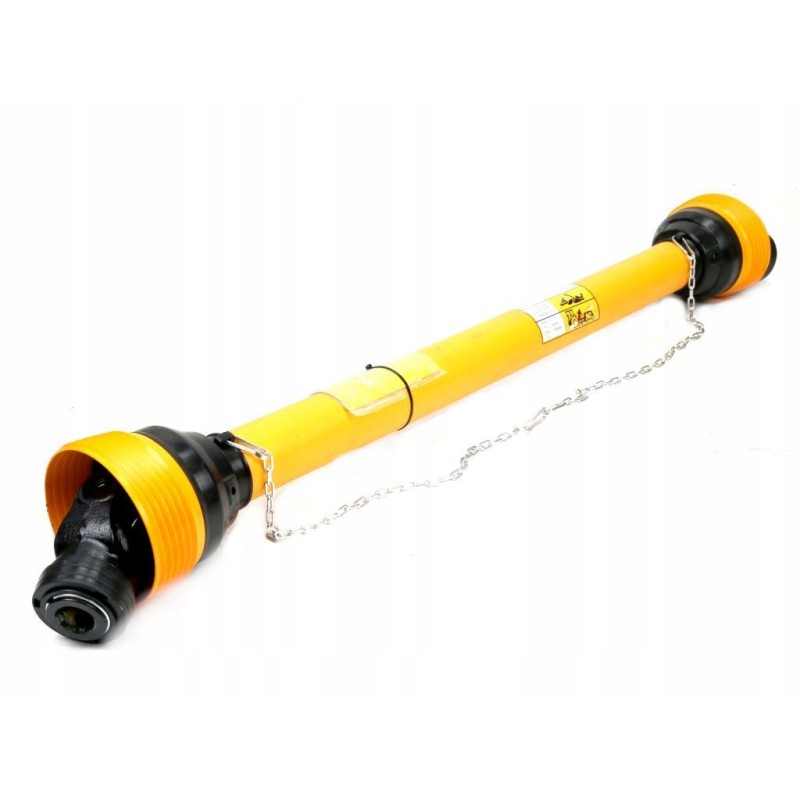

Articulated and telescopic shaft 1110 1600mm 620nm 60280

PTO shaft 1110-1600mm 620Nm 60280 CE 2020 series 5R Waryński EAN: 5902287198850

SKU: W5B1B11110

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures. Maximum length: 1600 mm Minimum length: 1110 mm Thickness of the inner pipe :45mm Outer tube thickness:51.5mm Nominal power:35 ( 47 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque:620Nm Working angle :Max 17° Bearing diameter:30.2mm Cross height:79.4mm Telescopic connector type:Triangular pipe Works with:External fork - WR227501, Cross fork - WR219501, Internal pipe fork. - WR219507, Outer tube fork - WR219506, Inner tube - WR2343955, Outer tube - WR2342985, Housing - WR21951129, Inner tube wall thickness:3.8mm Outer tube wall thickness:3mm Coupling opening torque:None Packing per::1 Coupling: None Inner tube thickness::45mm Outer tube thickness::51.5mm

Tractor attachment: 1 3/8' Z6'inch

Machine attachment: 1 3/8' Z6'inch

Telescopic connector type: Triangular tube

Length minimum: 1110mm

Maximum length: 1600 mm

Nominal power: 35 ( 47 )KW ( HP )

Clutch: None

Inner tube thickness: 45 mm

Outer tube thickness: 51.5 mm

Bearing diameter: 30.2 mm

Cross height: 79 .4mm

Works with: External fork - WR227501, Cross connector - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR2343955, Outer pipe - WR2342985, Housing - WR21951129,

Torque: 620Nm

Working angle: Max 17°

Inner pipe wall thickness: 3.8 mm

Outer pipe wall thickness : 3mm

Clutch disengaging torque: None

Packing by:: 1

Inner tube thickness:: 45mm

Outer tube thickness:: 51.5mm

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
