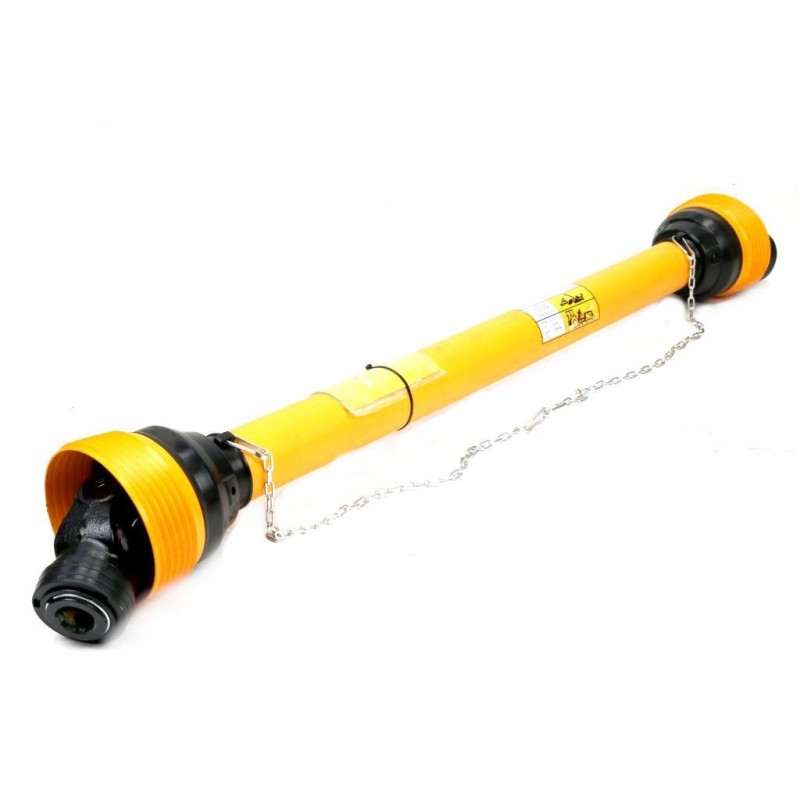

Articulated and telescopic shaft 1210 2050mm 620nm 60290

PTO shaft 1210-2050mm 620Nm 60290 CE 2020 series 5R Waryński EAN: 5902287198843

SKU: W5B1B11210

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures. Maximum length: 2050 mm Minimum length: 1210 mm Thickness of the inner pipe :45mm Outer tube thickness:51.5mm Nominal power:35 ( 47 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque:620Nm Working angle :Max 17° Bearing diameter:30.2mm Cross height:79.4mm Telescopic connector type:Triangular pipe Works with:External fork - WR227501, Cross fork - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR23431055, Outer pipe - WR23421090, Housing - WR21951129, Inner pipe wall thickness:3.8mm Outer pipe wall thickness:3mm Clutch disengaging torque:None Packing per::1 Pipe thickness inner tube::45mm Outer tube thickness::51.5mm Coupling:None

Tractor attachment: 1 3/8' Z6'inch

Machine attachment: 1 3/8' Z6'inch

Telescopic connector type: Triangular tube

Length minimum: 1210mm

Maximum length: 2050 mm

Nominal power: 35 ( 47 )KW ( HP )

Clutch: None

Inner tube thickness: 45 mm

Outer tube thickness: 51.5 mm

Bearing diameter: 30.2 mm

Cross height: 79 .4mm

Works with: External fork - WR227501, Cross connector - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR23431055, Outer pipe - WR23421090, Housing - WR21951129,

Torque: 620Nm

Working angle: Max 17°

Inner pipe wall thickness: 3.8 mm

Outer pipe wall thickness : 3mm

Clutch disengaging torque: None

Packing by:: 1

Inner tube thickness:: 45mm

Outer tube thickness:: 51.5mm
