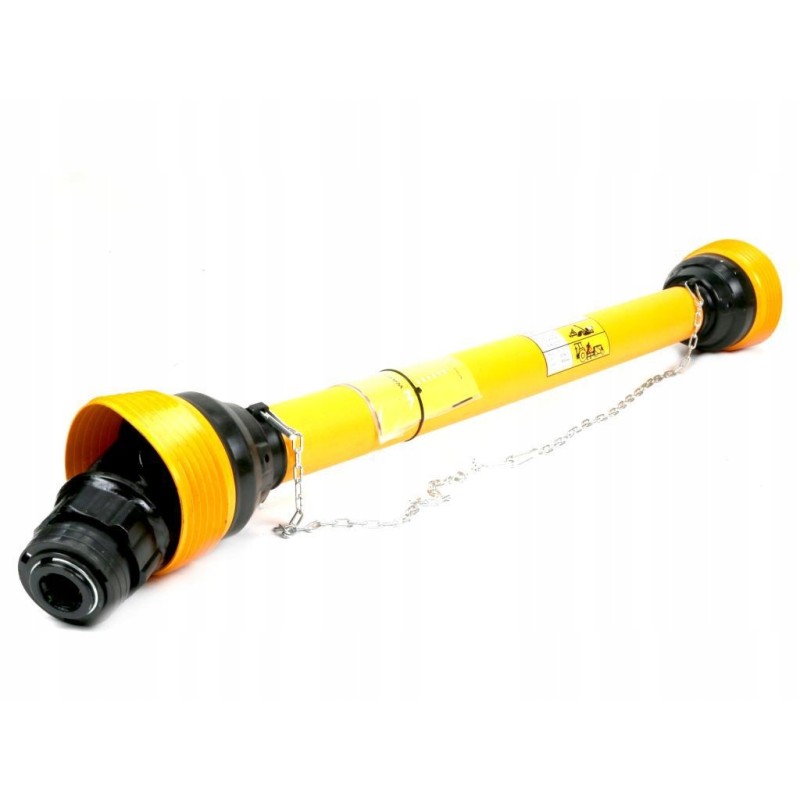

Articulated and telescopic shaft 1290 2050mm 620nm

PTO shaft 1290-2050mm 620Nm one-way clutch 60290 CE 2020 series 5R Waryński EAN: 5902287198935

SKU: W5B1101210

All products on our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: One-way clutch Length maximum:2050mm Minimum length:1210mm Inner tube thickness:45mm Outer tube thickness:51.5mm Nominal power:35 ( 47 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8 ' Z6'inch Torque: 620Nm Working angle: Max 17° Bearing diameter: 30.2mm Cross height: 79.4mm Telescopic connector type: Triangular pipe Works with: External fork - WR227501, WR215520, Cross fork - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR23431055, Outer pipe - WR23421090, Housing - WR21951129, Inner pipe wall thickness:3.8mm Outer pipe wall thickness:3mm Clutch disengaging torque:None Packing per::1 Pipe thickness inner tube::45mm Outer tube thickness::51.5mm

Tractor mounting: 1 3/8' Z6'in

Machine mounting: 1 3/8' Z6'in

Type of telescopic connector: Triangular pipe

Minimum length: 1210mm

Maximum length: 2050mm

Nominal power: 35 ( 47 )KW ( KM )

Clutch: One-way clutch

Inner tube thickness: 45mm

Outer tube thickness: 51.5mm

Bearing diameter: 30.2mm

Height of the cross: 79.4mm

Works with: External fork - WR227501, WR215520, Cross fork - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR23431055, Outer pipe - WR23421090, Housing - WR21951129,

Torque: 620Nm

Operating angle: Max 17°

Inner pipe wall thickness: 3.8mm

Outer pipe wall thickness: 3mm

Clutch breaking torque: None

Packing by:: 1

Thickness of the inner pipe: 45mm

Thickness of the outer pipe: 51.5mm
