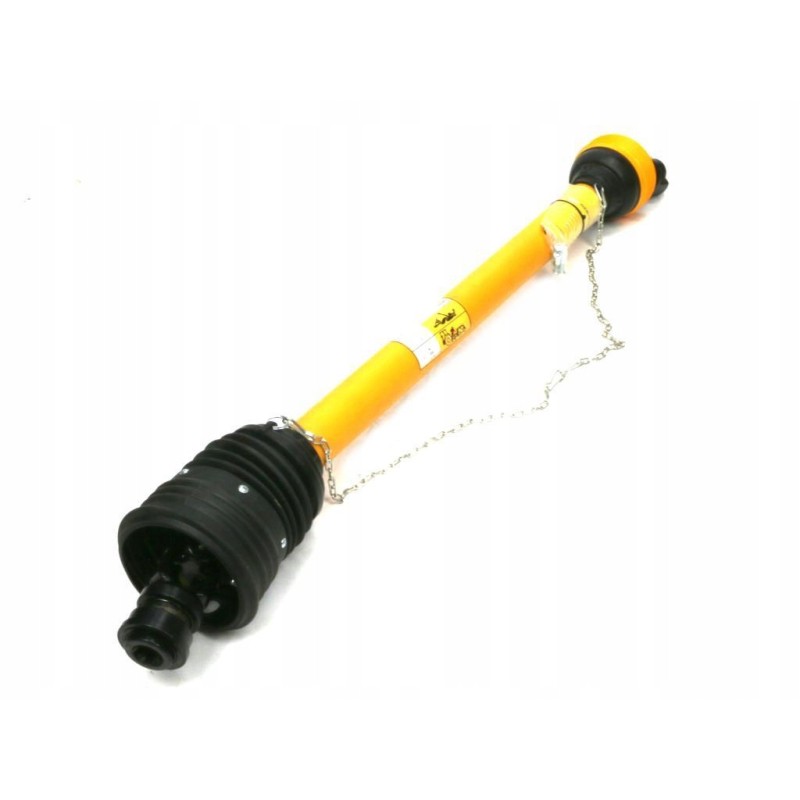

Articulated and telescopic shaft 860 1050mm 540nm

PTO shaft 860-1050mm 540Nm wide-angle dr. st. clutch with pin 1900 Nm CE 2020 series 4R Waryński EAN: 5902287227161

SKU: W49071860

All products at our auctions are new and from proven manufacturers

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Clutch with a pin , Wide-angle Maximum length:1050mm Minimum length:860mm Inner tube thickness:36mm Outer tube thickness:43.5mm Nominal power:30 ( 41 )KW (HP) Machine attachment:1 3/8' Z6'inch Tractor attachment:1 3/8' Z6'inch Torque:540Nm Working angle:Max 35° temporarily 80° Bearing diameter:27mm Cross height:74.6mm Telescopic connector type:Triangular tube Works with:External fork - WR214471, WR216390, Cross - WR219301, Internal pipe fork. - WR219307, Inner pipe - WR2323705, Outer pipe - WR2322735, Coupling - WR214373, Housing - WR22941129 Inner pipe wall thickness:4.5mm Outer pipe wall thickness:3.4mm Packing by::1 Inner pipe thickness::36mm Outer pipe thickness ::43.5mm Clutch disengaging power:1900 NmNm

Mounting to the tractor: 1 3/8' Z6'inch

Mounting to the machine: 1 3/8' Z6'cal< p>

Type of telescopic connector: Triangular pipe

Minimum length: 860mm

Maximum length: 1050mm

Nominal power: 30 ( 41 )KW ( KM )

Clutch: clutch with pin, wide angle

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

Diameter bearings: 27mm

Height of the cross: 74.6mm

Works with: External fork - WR214471, WR216390, Cross fork - WR219301, Internal pipe fork. - WR219307, Inner pipe - WR2323705, Outer pipe - WR2322735, Clutch - WR214373, Housing - WR22941129

Clutch disengaging power: 1900 NmNm

Torque: 540Nm

Working angle: Max 35° temporarily 80°

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

Packing after: : 1

Thickness of the inner tube:: 36mm

Thickness of the outer tube:: 43.5mm

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ . Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
