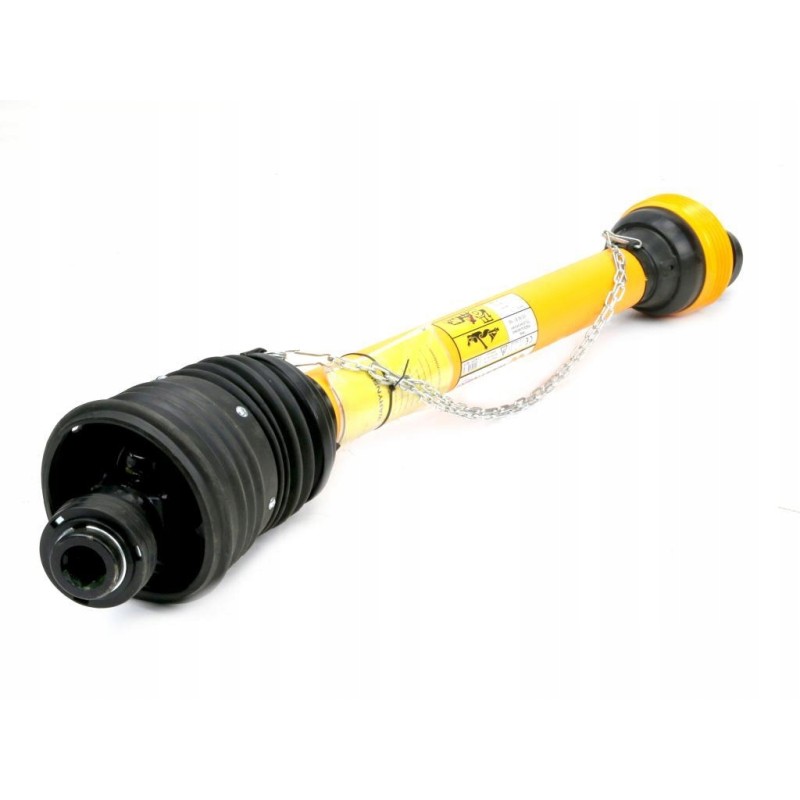

Articulated and telescopic shaft 760 1150mm 540nm

PTO shaft 760-1150mm 540Nm wide-angle CE 2020 series 4R Waryński EAN: 5902287227154

SKU: W490B1760

All products on our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Wide-angle Minimum length :760mm Inner tube thickness:36mm Outer tube thickness:43.5mm Nominal power:30 ( 41 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque rotation: 540Nm Working angle: Max 35° temporarily 80° Bearing diameter: 27mm Cross height: 74.6mm Telescopic connector type: Triangular pipe Works with: External fork - WR227401, WR216390, Cross fork - WR219401, Internal pipe fork. - WR219407, Outer tube fork - WR219406, Inner tube - WR2343605, Outer tube - WR2342635, Housing - WR22941129, Inner tube wall thickness:4.5mm Outer tube wall thickness:3.4mm Clutch opening torque:None Packing in::1 Maximum length:980mm Inner tube thickness::36mm Outer tube thickness::43.5mm Clutch disengaging power:None

Tractor mounting: 1 3/8' Z6' inch

Mounting to machine: 1 3/8' Z6'inch

Telescopic connector type: Triangular tube

Minimum length: 760mm

Maximum length: 980mm

< p/>Nominal power: 30 ( 41 )KW (HP)

Clutch: Wide angle

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

Bearing diameter: 27mm

Cross head height: 74.6mm

Works with: External fork - WR227401, WR216390, Cross fork - WR219401, Internal pipe fork. - WR219407, Outer pipe fork - WR219406, Inner pipe - WR2343605, Outer pipe - WR2342635, Housing - WR22941129,

Clutch disengaging power: None

Torque: 540Nm

Working angle: Max 35° temporarily 80°

Inner pipe wall thickness: 4.5mm

Outer pipe wall thickness: 3.4mm

Clutch disengaging torque: None

Packing by:: 1

Inner tube thickness:: 36mm

Outer tube thickness:: 43.5mm

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
