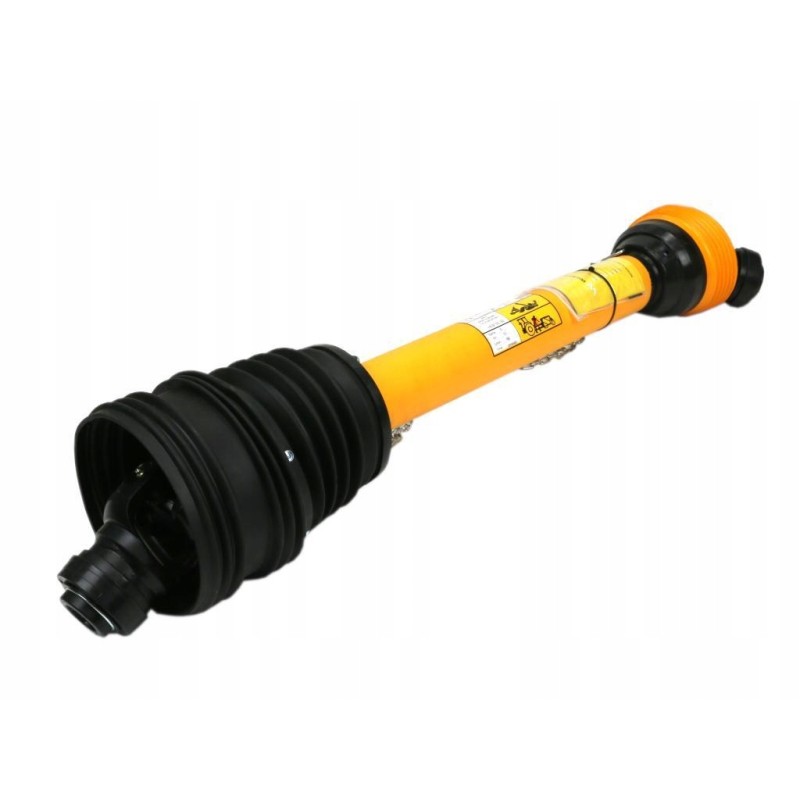

Articulated and telescopic shaft 860 1250mm 830nm

PTO shaft 860-1250mm 830Nm wide-angle CE 2020 series 6R WARYŃSKI EAN: 5902287198997

SKU: W6B190860

All products on our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: Wide-angle Maximum length :1250mm Minimum length:860mm Inner tube thickness:45mm Outer tube thickness:54mm Nominal power:47 ( 64 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6' inch Torque: 830Nm Working angle: Max 35° temporarily 80° Bearing diameter: 30.2mm Cross height: 91.4mm Telescopic connector type: Triangular pipe Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - , Inner pipe - WR2363705, WR2140600, Outer pipe - WR2362735, WR2141600, Housing - WR22961129, Inner pipe wall thickness: 5.5 mm Outer pipe wall thickness: 4 mm Clutch opening torque: None Packing after :: 1 Thickness of the inner tube::45mm Thickness of the outer tube::54mm Nominal power::47 ( 64 )KW (HP)

Mounting to the tractor: 1 3/8' Z6'cal

Mounting to the machine: 1 3/8' Z6'inch

Telescopic connector type: Triangular tube

Minimum length: 860mm

Maximum length: 1250mm

Nominal power: 47 ( 64 )KW (HP)

Clutch: Wide angle

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Bearing diameter: 30.2mm

Cross head height: 91.4mm

Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - , Inner pipe - WR2363705, WR2140600, Outer pipe - WR2362735, WR2141600, Housing - WR22961129,

Torque: 830Nm

Operating angle: Max 35 ° temporarily 80°

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

Clutch disconnecting torque: None

Packing by:: 1

Inner pipe thickness:: 45mm

Outer pipe thickness:: 54mm

Nominal power:: 47 ( 64 )KW (HP) )

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
