Front loader vibration damper

Front loader vibration damper

Part number: K. FLDS2002N

EAN: 8719493095487

Unit: Piece

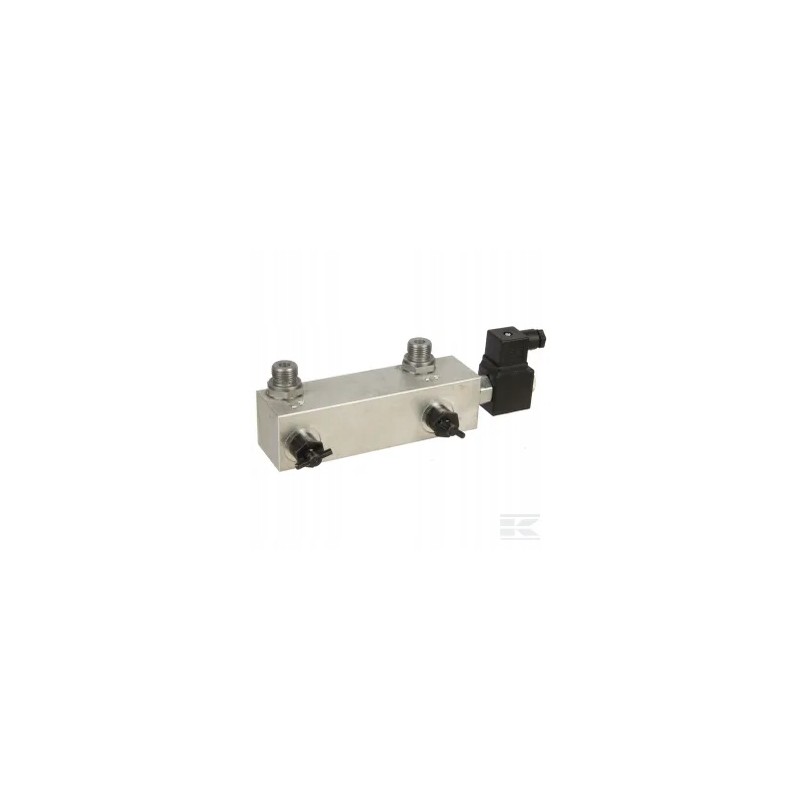

Product description: FLDS branch block The 2002N is a complete, pre-assembled aluminum terminal block. In combination with two membrane accumulators, the distributor block can be used as part of the shock absorption system of front loaders and lifts. Together with the installed batteries, it relieves the operator and the tractor. Batteries are not included in the set and must be ordered separately. Show more

Advantages:

Relieves the burden on the driver and tractor

Excellent damping, independent of load

Easy to use

Easy installation

Safe use

Product details:

Combined with batteries, it creates a complete damping system

Two (FLDS2002N) or three (FLDS2003N) batteries can be installed, one of which is used to dampen resonance vibrations

Each battery connection is equipped with a mechanical shut-off valve

Vibration damping system can be switched on and off electrically

Used for front loaders and lifts

Consists of an aluminum block, two manually operated shut-off valves and a 2/2 electric valve

Additional information:

The single-acting cylinder is connected to the 1/2' port

When driving, pressure peaks that occur may flow into the hydraulic fluid reservoirs

Vibrations and shocks are dampened in this way

Connection thread diameter: 1/2 inch

Application: Hydraulic oils based on mineral oils

Material: Foot plate with aluminum, tank housing made of steel, membrane made of NBR

Max. operating pressure: 210BAR

Floor strip: FLDS can be attached with screws in the right place, e.g. on the front loader frame. Threaded holes are drilled in the foot plate, and you can also build a support. The installation position is any. Connection is easy, the device only needs to be connected to the appropriate actuator supply cable (DW or EW). The coil of the 2/2-way valve must be connected to a protected, switchable power supply cable. Show more

Note: Please note that in the case of installations with a built-in tank, thanks to the accumulated pressurized liquid, Movement of working tools is possible even when the pump is not running. Maintenance and repair work on systems equipped with storage tanks should only be carried out with the tanks unloaded and disconnected. To do this, close the mechanical valves on each tank and remove the plug from the 2/2-way valve coil. A threaded fitting with a measuring point should be installed at an appropriate place in the pipe to ensure that there is no pressure in the system. Show more

Type: single-acting

Voltage: Co
