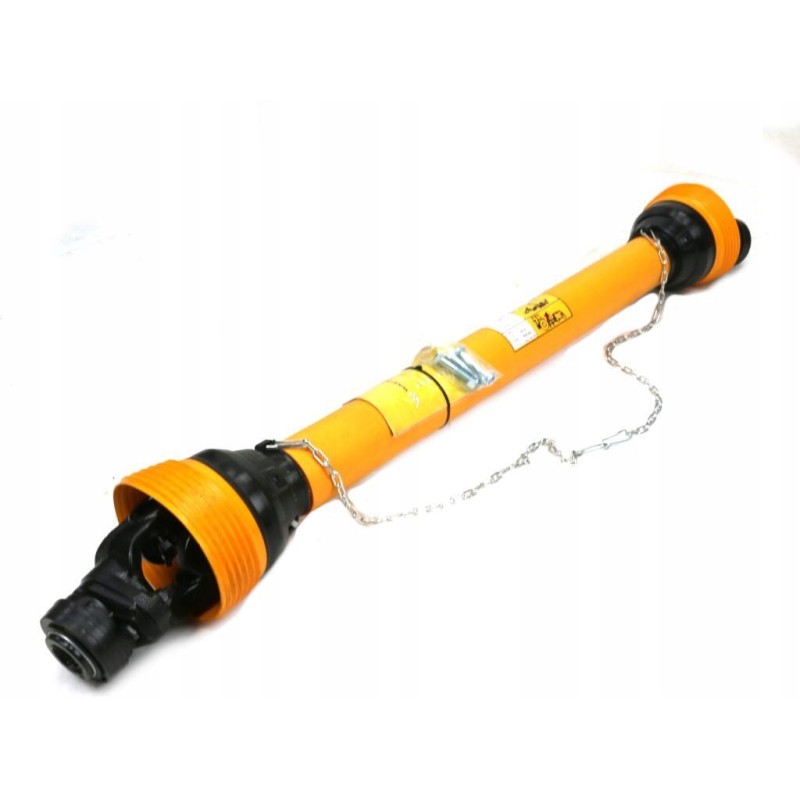

Articulated and telescopic shaft 860 1190mm 620nm

PTO shaft 860-1190mm 620Nm clutch with pin Z21 2200Nm CE 2020 5R series Waryński EAN: 5902287227178

SKU: W5B172860

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: clutch with pin Maximum length: 1190 mm Minimum length :860mm Inner tube thickness:45mm Outer tube thickness:51.5mm Nominal power:35 ( 47 )KW (HP) Mounting to the machine:1 3/8' Z21'inch Mounting to the tractor:1 3/8' Z6'inch Torque rotation: 620Nm Working angle: Max 17° Bearing diameter: 30.2mm Cross height: 79.4mm Telescopic connector type: Triangular tube Works with: External fork - WR227501, WR227502, Cross - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR2343705, Outer pipe - WR2342735, Housing - WR21951129, Inner pipe wall thickness:3.8mm Outer pipe wall thickness:3mm Packing per::1 Clutch breaking power:2200Nm Pipe thickness inner tube::45mm Outer tube thickness::51.5mm

Tractor mounting: 1 3/8' Z6'inch

Machine mounting: 1 3/8' Z21'inch

Telescopic connector type: Triangular pipe

Minimum length: 860mm

Maximum length: 1190 mm

Nominal power: 35 ( 47 ) KW ( HP )

Clutch: Clutch with pin

Inner tube thickness: 45 mm

Outer tube thickness: 51.5 mm

Bearing diameter: 30.2 mm

Cross height: 79, 4mm

Works with: External fork - WR227501, WR227502, Krzyżak - WR219501, Internal pipe fork. - WR219507, Outer tube fork - WR219506, Inner tube - WR2343705, Outer tube - WR2342735, Housing - WR21951129,

Clutch breaking power: 2200Nm

Torque: 620 Nm

Working angle: Max 17°

Inner tube wall thickness: 3 , 8mm

Wall thickness of the outer tube: 3mm

Packing in:: 1

Thickness of the inner tube:: 45mm

Thickness of the outer tube:: 51.5mm
