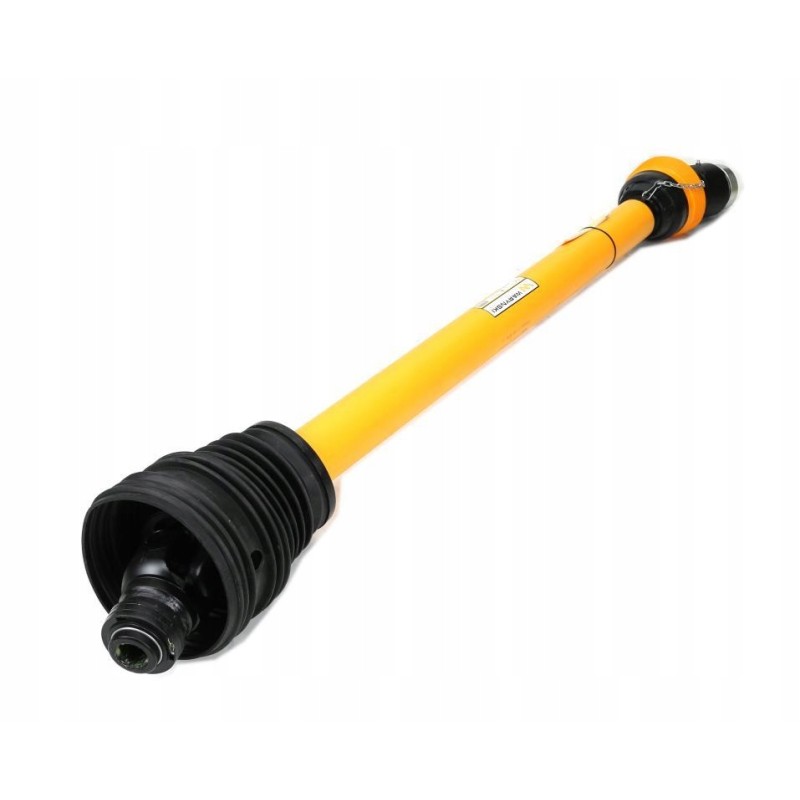

Articulated and telescopic shaft 1510 2400mm 830nm width

PTO shaft 1510-2400mm 830Nm wide Index W690121510Clutch: One-way, Wide Angle

Maximum length: 2400

Minimum length: 1510

Inner tube thickness: 45

Outer tube thickness: 54

Nominal power: 47 ( 64 )

Mounting to the machine: 1 3/8' Z21

Tractor attachment: 1 3/8' Z6

Torque: 830

Working angle: Max 17°

Bearing diameter: 30.2

Cross height: 91.6

Type of telescopic connector: Triangular pipe

Works with: Krzyżak - WR219601, Widłak internal pipes. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2140600, Outer pipe - WR2141600, Housing - WR22961129, Coupling - WR215620, WR216290

Inner pipe wall thickness: 5.5

Outer pipe wall thickness: 4

Distribution power connecting clutch: None

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Attachment to the tractor: 1 3/8' Z6cal

Attachment to the machine: 1 3/8' Z21 inch

Type of telescopic connector: Triangular tube

Minimum length: 1510 mm

Maximum length: 2400 mm

Nominal power: 47 ( 64 )KW (HP)

Clutch: One-way, Wide Angle

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Bearing diameter: 30.2mm

Display height: 91.6mm

Works with: Disconnect - WR219601, Inner tube fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2140600, Outer pipe - WR2141600, Housing - WR22961129, Clutch - WR215620, WR216290

Clutch disengaging power: None

Torque: 830Nm

Operating angle: Max 1 7°

Wall thickness inner tube: 5.5mm

Outer tube wall thickness: 4mm

EAN 5902287212051

* When ordering this product, WARYŃSKI fragrance pendant, FREE! The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance to working in difficult conditions.
