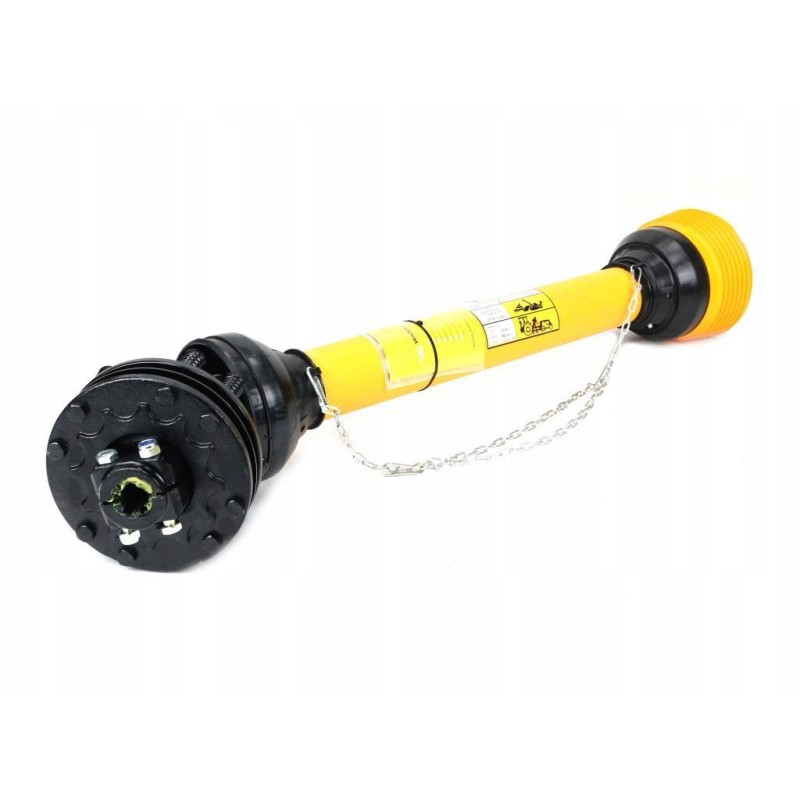

Articulated and telescopic shaft 1660 2390mm 1890nm coupling

PTO shaft 1660-2390 mm 1890 Nm coupling Index W9B1611660 Clutch: Friction

Maximum length: 2390

Minimum length: 1660

Inner tube thickness: 54

Outer tube thickness: 63

Nominal power: 106 ( 145 )

Mounting to the machine: 1 3 /8' Z6

Attachment to the tractor: 1 3/8' Z6

Torque: 1890

Working angle: Max 35°, temporarily 80°

Bearing diameter: 41

Height of the cross: 118

Type of telescopic connector: Triangular tube

Works with : External pipe fork - WR227901, Cross connector - WR219901, External pipe fork - WR219906, Internal pipe fork. - WR219907, Inner pipe - WR23831055, Outer pipe - WR23821090, Housing - WR21991129, Coupling - WR213950

Inner pipe wall thickness: 5

Outer pipe wall thickness: 4

Coupling disconnecting power: 2500

Shaft made according to the new PN-EN Standard 12965_2020. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Attachment to the tractor: 1 3/8' Z6cal

Attachment to the machine: 1 3/8' Z6cal

Type of telescopic connector: Triangular tube

Minimum length: 1660 mm

Maximum length: 2390 mm

Nominal power: 106 ( 145 )KW (HP)

Clutch: Friction

Inner pipe thickness: 54mm

Outer pipe thickness: 63mm

Bearing diameter: 41mm

Cross head height: 118mm

Works with: External fork - WR227901, Cross fork - WR219901, Outer pipe fork - WR219906, Inner pipe fork. - WR219907, Inner pipe - WR23831055, Outer pipe - WR23821090, Housing - WR21991129, Clutch - WR213950

Clutch disengaging power: 2500Nm

Torque: 1890Nm

Working angle: Max 35° temporarily 80°

Inner pipe wall thickness: 5mm

Thickness outer tube walls: 4mm

EAN 5902287212204

* When ordering this product, get a WARYŃSKI fragrance pendant, FREE! The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance to working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we do not guarantee that the published photos, technical data and descriptions do not contain omissions or errors.

If you have any doubts about the quality of the products received or possible discrepancies in appearance, please report it to us in an Allegro message. We will certainly make every effort to verify the problem and solve it, and above all, dispel your doubts.
