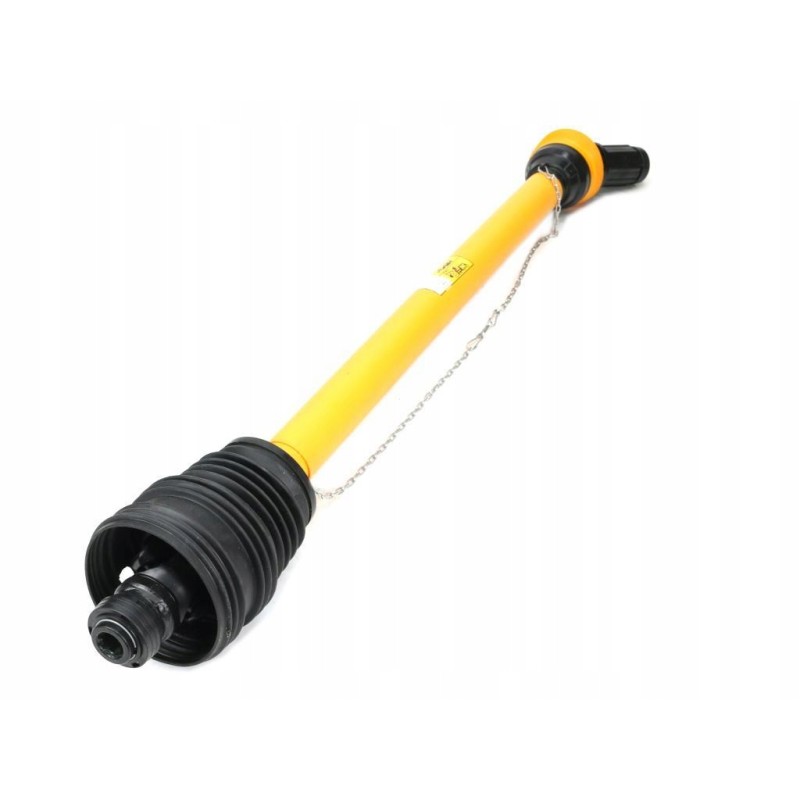

Articulated and telescopic shaft 1290 2100mm 830nm coupling

PTO shaft 1290-2100mm 830Nm coupling Index W645901290Clutch: Ratchet, Wide-angle

Maximum length: 2100

Minimum length: 1290

Inner tube thickness: 45

Outer tube thickness: 54

Nominal power: 47 (64)

Mounting to machines: 1 3/8' Z6

Tractor mounting: 1 3/8' Z21

Torque: 830

Working angle: Max 17°

Bearing diameter: 30.2

Cross height: 91.6

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227601, Krzyżak - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR23631055, Outer pipe - WR23621090, Housing - WR22961129, Coupling - WR216290

Inner pipe wall thickness: 5.5

Outer pipe wall thickness: 4

Clutch breaking power: None

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Attachment to the tractor: 1 3/8' Z21cal

Attachment to the machine: 1 3/8' Z6cal

Type of telescopic connector: Triangular tube

Minimum length: 1290 mm

Maximum length: 2100 mm

Nominal power: 47 ( 64 )KW (HP)

Clutch: Ratchet, Wide-angle

Inner pipe thickness: 45mm

Outer pipe thickness: 54mm

Bearing diameter: 30.2mm

Cross head height: 91.6mm

Works with: External fork - WR227601, Cross fork - WR219601, Inner pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR23631055, Outer pipe - WR23621090, Housing - WR22961129, Clutch - WR216290

Clutch disconnecting power: None

Torque: 830Nm

Operating angle: Max 17°

Thickness walls of the inner pipe : 5.5mm

Outer pipe wall thickness: 4mm

EAN 5902287212075

* When ordering this product, a WARYŃSKI fragrance pendant, FREE! The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance to working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we do not guarantee that the published photos, technical data and descriptions do not contain omissions or errors.

If you have any doubts about the quality of the products received or possible discrepancies in appearance, please report it to us in an Allegro message. We will certainly make every effort to verify the problem and solve it, and above all, dispel your doubts.
