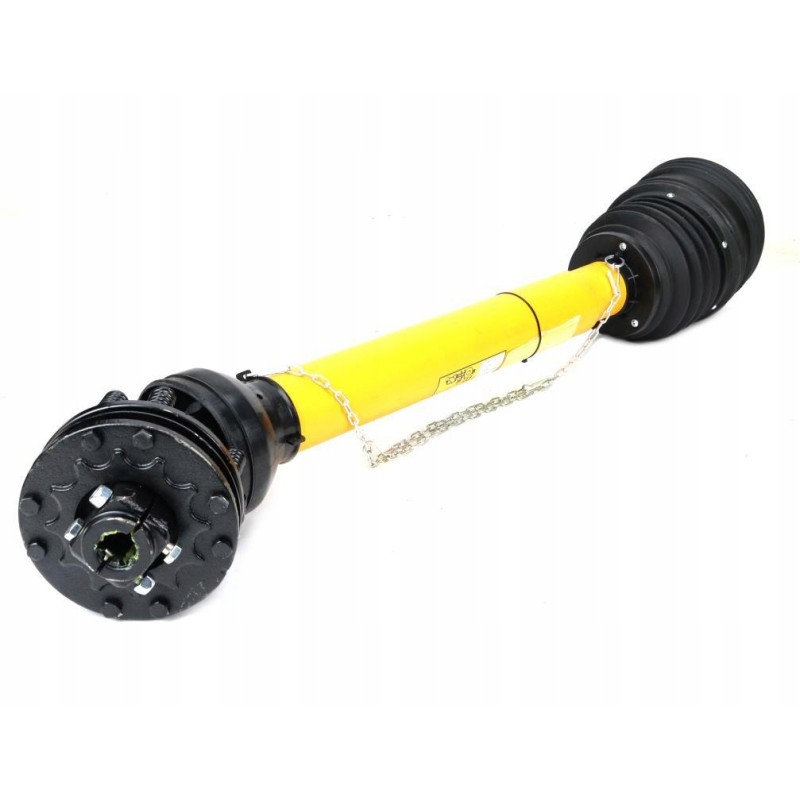

Articulated and telescopic shaft 1460 2100mm 1240nm width

PTO shaft 1460-2100 mm 1240 Nm width Index W890631460 Clutch: Wide-angle, Friction Clutch

Maximum length: 2100

Minimum length: 1460

Inner tube thickness: 54

Outer tube thickness: 63

Nominal power: 70 (95)

Mounting to the machine : 1 3/8' Z6

Attachment to the tractor: 1 3/8' Z6

Torque: 1240

Working angle: Max 35° temporarily 80°

Bearing diameter: 35.01

Cross height: 106.3

Connector type telescopic: Triangular pipe

Works with: External fork - WR227801, Cross fork - WR219801, Internal pipe fork. - WR219807, Outer pipe fork - WR219806, Inner pipe - WR2140800, Outer pipe - WR2141800, Housing - WR21981129, Coupling - WR213850

Inner pipe wall thickness: 5

Outer pipe wall thickness: 4

Clutch breaking power: 200 0

Shaft completed according to the new Standard PN-EN-12965_2020. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Attachment to the tractor: 1 3/8' Z6cal

Attachment to the machine: 1 3/8' Z6cal

Type of telescopic connector: Triangular tube

Minimum length: 1460 mm

Maximum length: 2100 mm

Nominal power: 70 ( 95 )KW (HP)

Clutch: Wide-angle, Friction Clutch

Inner pipe thickness: 54mm

Outer pipe thickness: 63mm

Bearing diameter: 35.01mm

Cross head height: 106.3mm

Works with: External fork - WR227801, Cross fork - WR219801, Inner pipe fork. - WR219807, Outer pipe fork - WR219806, Inner pipe - WR2140800, Outer pipe - WR2141800, Housing - WR21981129, Clutch - WR213850

Clutch disengaging power: 2000Nm

Torque: 1240Nm

Operating angle: Max 35° temporarily 80°

Thickness inner tube walls: 5mm

Outer tube wall thickness: 4mm

EAN 5902287212105
