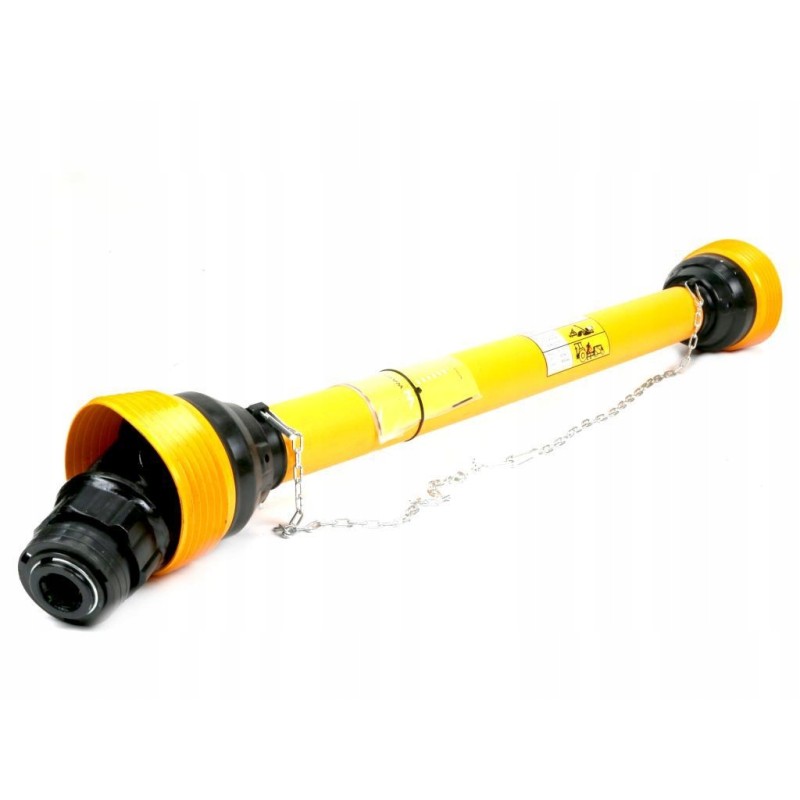

Articulated and telescopic shaft 860 1250mm 620nm

PTO shaft 860-1250mm 620Nm one-way clutch 60250 CE 2020 5R series WARYŃSKI EAN: 5902287198942

SKU: W5B110860

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: One-way clutch Maximum length: 1250 mm Minimum length: 860mm Inner tube thickness:45mm Outer tube thickness:51.5mm Nominal power:35 ( 47 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque :620Nm Working angle:Max 17° Bearing diameter:30.2mm Cross height:79.4mm Telescopic connector type:Triangular pipe Works with:External fork - WR227501, WR215520, Cross fork - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR2343705, Outer pipe - WR2342735, Housing - WR21951129, Inner pipe wall thickness:3.8mm Outer pipe wall thickness:3mm Clutch opening torque:None Packing in::1 Pipe thickness inner tube::45mm Outer tube thickness::51.5mm

Tractor attachment: 1 3/8' Z6'inch

Machine attachment: 1 3/8' Z6'inch

Type of telescopic connector: Triangular pipe

Minimum length: 860mm

Maximum length: 1250 mm

Nominal power: 35 ( 47 ) KW ( HP )

Clutch: One-way clutch

Inner tube thickness: 45 mm

Outer tube thickness: 51.5 mm

Bearing diameter: 30.2 mm

Cross height: 79.4 mm

Works with: External fork - WR227501, WR215520, Krzyżak - WR219501, Internal pipe fork. - WR219507, Outer pipe fork - WR219506, Inner pipe - WR2343705, Outer pipe - WR2342735, Housing - WR21951129,

Torque: 620Nm

Working angle: Max 17°

Inner pipe wall thickness: 3.8 mm

Outer pipe wall thickness : 3mm

Clutch disengaging torque: None

Packing by:: 1

Inner tube thickness:: 45mm

Outer tube thickness:: 51.5mm

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
