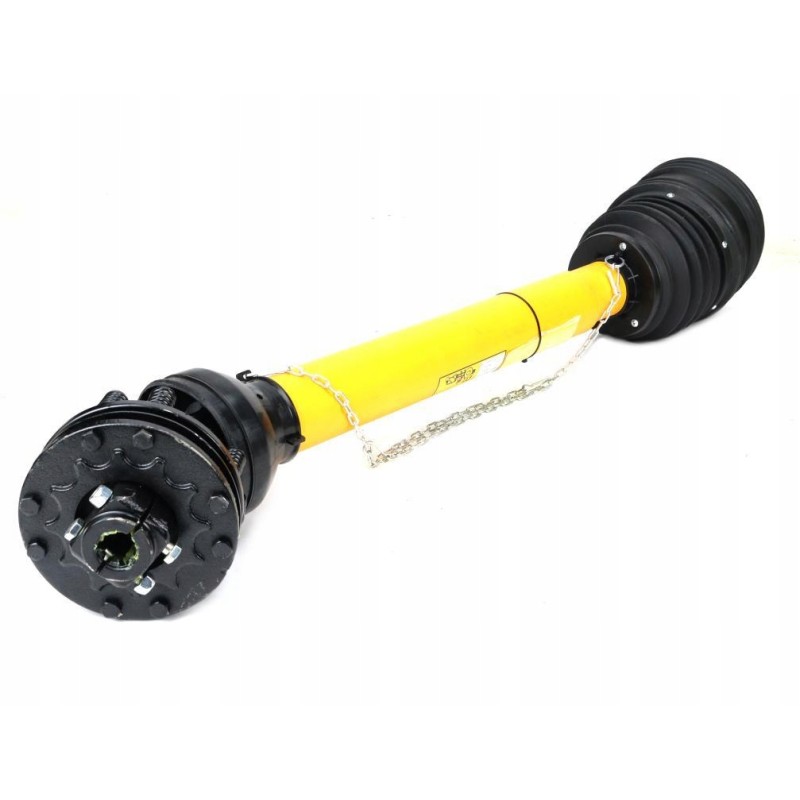

Articulated and telescopic shaft 1450 2500mm 1240nm width

PTO shaft 1450-2500 mm 1240 Nm width Index W892621450 Clutch: Wide-angle, Friction Clutch

Maximum length: 2500

Minimum length: 1450

Inner tube thickness: 54

Outer tube thickness: 63

Nominal power: 70 ( 95 )

Mounting to the machine : 1 3/8' Z21

Attachment to the tractor: 1 3/8' Z21

Torque: 1240

Working angle: Max 35° temporarily 80°

Bearing diameter: 35.01

Height of the cross: 106.3

Type of connector telescopic: Triangular pipe

Works with: External fork - WR227801, Cross fork - WR219801, Internal pipe fork. - WR219807, Outer pipe fork - WR219806, Inner pipe - WR2140800, Outer pipe - WR2141800, Housing - WR21981129, Coupling - WR213850

Inner pipe wall thickness: 5

Outer pipe wall thickness: 4

Clutch breaking power: 200 0

Shaft completed according to the new Standard PN-EN-12965_2020. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Attachment to the tractor: 1 3/8' Z21cal

Attachment to the machine: 1 3/8' Z21cal

Type of telescopic connector: Triangular tube

Minimum length: 1450mm

Maximum length: 2500mm

Nominal power: 70 ( 95 )KW (HP)

Clutch: Wide-angle, Friction Clutch

Inner pipe thickness: 54mm

Outer pipe thickness: 63mm

Bearing diameter: 35.01mm

Cross head height: 106.3mm

Works with: External fork - WR227801, Cross fork - WR219801, Inner pipe fork. - WR219807, Outer pipe fork - WR219806, Inner pipe - WR2140800, Outer pipe - WR2141800, Housing - WR21981129, Clutch - WR213850

Clutch disengaging power: 2000Nm

Torque: 1240Nm

Operating angle: Max 35° temporarily 80°

Thickness inner tube walls: 5mm

Outer tube wall thickness: 4mm

EAN 5902287212136

* When ordering this product, WARYŃSKI scented pendant, FREE! The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance to working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we do not guarantee that the published photos, technical data and descriptions do not contain omissions or errors.

If you have any doubts about the quality of the products received or possible discrepancies in appearance, please report it to us in an Allegro message. We will certainly make every effort to verify the problem and solve it, and above all, dispel your doubts.
