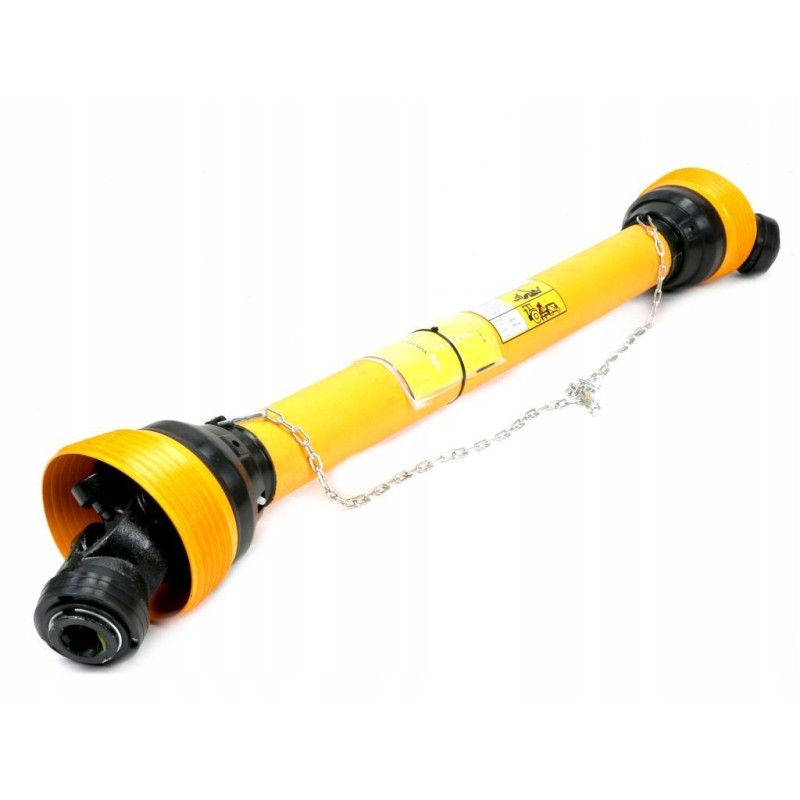

Articulated and telescopic shaft 1010 1450mm 830nm z21

PTO shaft 1010-1450mm 830Nm Z21 CE 2020 series 6R Waryński EAN: 5902287227260

SKU: W6B1B21010

All products at our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: None Maximum length :1450mm Minimum length:1010mm Inner tube thickness:45mm Outer tube thickness:54mm Nominal power:47 ( 64 )KW (HP) Mounting to the machine:1 3/8' Z21'inch Mounting to the tractor:1 3/8' Z6' inch Torque: 830Nm Working angle: Max 17° Bearing diameter: 30.2mm Cross height: 91.6mm Telescopic connector type: Triangular pipe Works with: External fork - WR227601, WR227602, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, WR2140600, Outer pipe - WR2362885, WR2141600, Housing - WR22961129, Inner pipe wall thickness: 5.5 mm Outer pipe wall thickness: 4 mm Coupling torque ło:None Packing after: :1 Thickness of the inner tube::45mm Thickness of the outer tube::54mm Nominal power::47 ( 64 )KW (HP) Clutch disengaging torque:None

Mounting to the tractor: 1 3/8' Z6'inch

Mounting to the machine: 1 3/8' Z21' inch

Telescopic connector type: Triangular tube

Minimum length: 1010mm

Maximum length: 1450mm

Nominal power: 47 ( 64 )KW (HP)

Clutch: None

Inner tube thickness: 45mm

Thickness of the outer tube: 54mm

Bearing diameter: 30.2mm

Height of the cross: 91.6mm

Works with: External fork -WR227601, WR227602, Cross - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363855, WR2140600, Outer pipe - WR2362885, WR2141600, Housing - WR22961129,

Torque: 830Nm

Working angle: Max 17°

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

Clutch disconnecting torque: None

Packing after:: 1

Thickness of the inner pipe:: 45mm

Thickness of the outer pipe:: 54mm

Nominal power:: 47 ( 64 )KW (HP)< p>

Clutch disengaging torque: None

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
