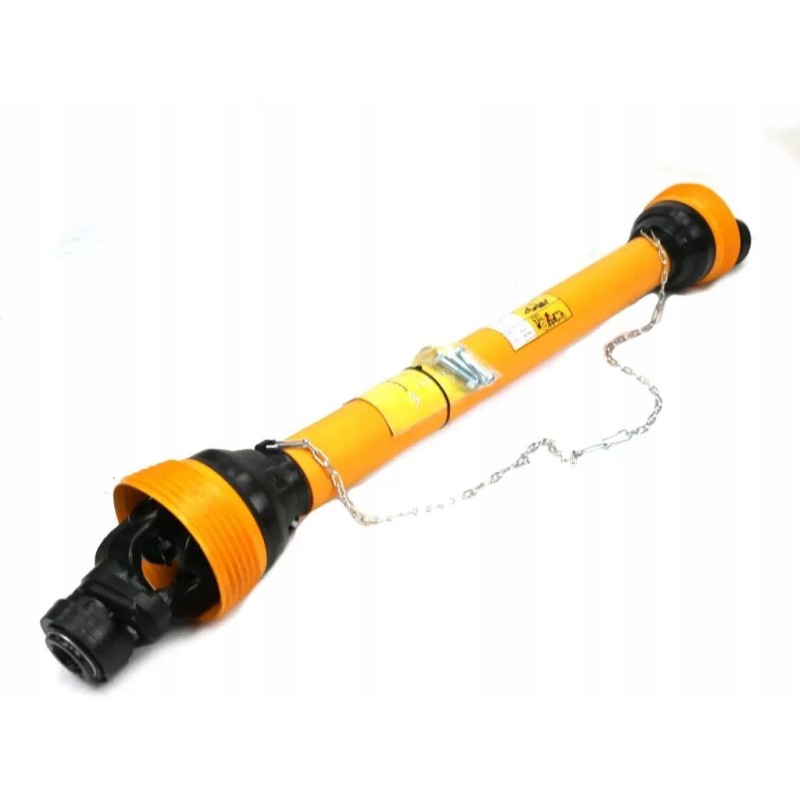

Articulated and telescopic shaft 860 1175mm 1240nm coupling

PTO shaft 860-1175mm 1240Nm coupling Index W8B171860Clutch: Coupling with pin

Maximum length: 1175

Minimum length: 860

Inner tube thickness: 54< p>

Outer tube thickness: 63

Nominal power: 70 ( 95 )

Mounting to the machine: 1 3/8' Z6'

Attachment to the tractor: 1 3/8' Z6'

Torque: 1240

Operating angle: Max 17°

Bearing diameter: 35

< p/>Height of the cross: 106

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227801, Cross fork - WR219801, External pipe fork - WR219806, Internal pipe fork. - WR219807, Inner pipe - WR2383705, Outer pipe - WR2382735, Housing -

Inner pipe wall thickness: 4

Outer pipe wall thickness: 4

Shaft made according to the new Standard PN-EN-12965_2020. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: clutch with a pin

Maximum length: 1175mm

Minimum length: 860mm

Inner tube thickness: 54mm

Outer tube thickness: 63mm

< p/>Nominal power: 70 ( 95 )KW (HP)

Mounting to the machine: 1 3/8' Z6'cal

Mounting to the tractor: 1 3/8' Z6 'inch

Torque: 1240Nm

Operating angle: Max 17°

Bearing diameter: 35mm

Square height: 106mm

Type of telescopic connector: Triangular pipe

Works with: External pipe fork - WR227801, Cross fork - WR219801, External pipe fork - WR219806, Internal pipe fork. - WR219807, Inner pipe - WR2383705, Outer pipe - WR2382735, Housing -

Inner pipe wall thickness: 4mm

Outer pipe wall thickness: 4mm

EAN 5902287227314

The Waryński company, using its many years of production experience in the industrial sector, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance when working in difficult conditions.
