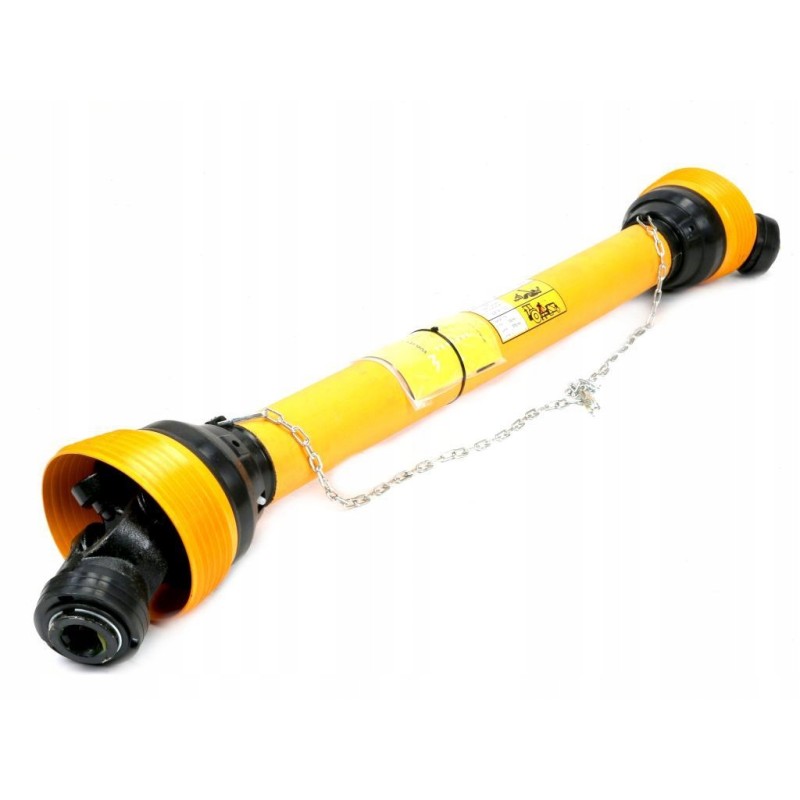

Articulated and telescopic shaft 910 1300mm 830nm CE2020

PTO shaft 910-1300mm 830Nm CE 2020 series 6R WARYŃSKI EAN: 5902287198898

SKU: W6B1B1910

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: None Maximum length: 1350 mm Minimum length: 910 mm Inner tube thickness:45mm Outer tube thickness:54mm Nominal power:47 ( 64 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3/8' Z6'inch Torque:830Nm Angle working: Max 17° Bearing diameter: 30.2 mm Cross height: 91.4 mm Telescopic connector type: Triangular pipe Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363735, WR2140600, Outer pipe - WR2362785, WR2141600, Housing - WR22961129, Inner pipe wall thickness: 5.5 mm Outer pipe wall thickness: 4 mm Clutch disconnecting torque :None Packing by: :1 Inner tube thickness::45mm Outer tube thickness::54mm Nominal power::47 ( 64 )KW (HP)

Tractor mounting: 1 3/8' Z6'cal

Machine mounting: 1 3/8' Z6 'inch

Type of telescopic connector: Triangular pipe

Minimum length: 910 mm

Maximum length: 1350 mm

Nominal power: 47 ( 64 )KW ( HP )

Coupling: None

Inner pipe thickness: 45 mm

Outer pipe thickness: 54 mm

Bearing diameter : 30.2mm

Cross head height: 91.4 mm

Works with: External fork - WR227601, Cross head - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363735, WR2140600, Outer pipe - WR2362785, WR2141600, Housing - WR22961129,

Torque: 830Nm

Working angle: Max 17°

Wall thickness of the inner pipe: 5.5mm

Outer tube wall thickness: 4mm

Clutch disconnecting torque: None

Packing per:: 1

Inner tube thickness:: 45 mm

Outer tube thickness:: 54 mm

Nominal power:: 47 ( 64 )KW ( HP )
