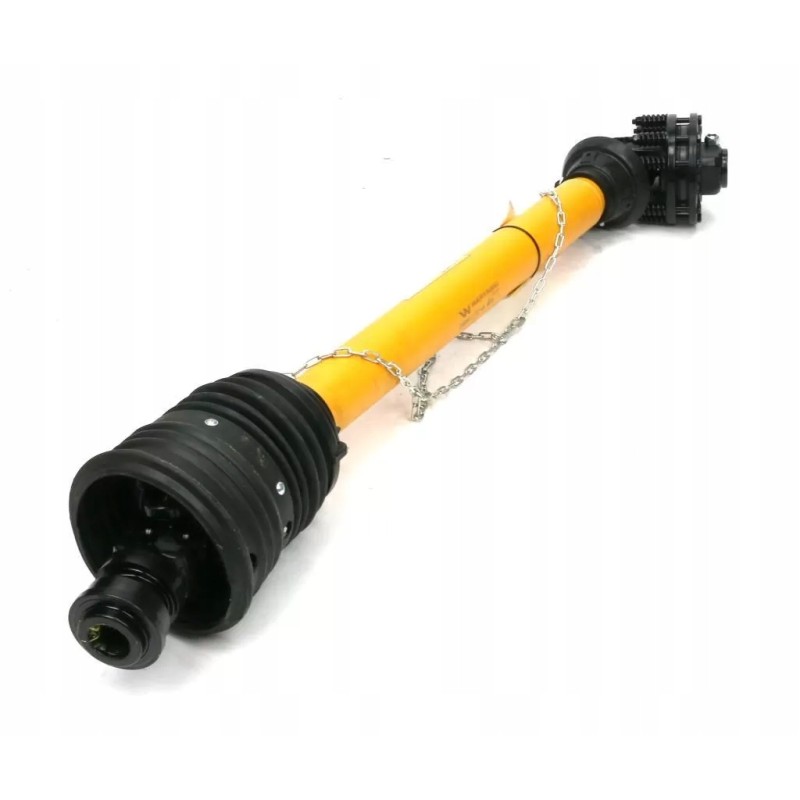

Articulated and telescopic shaft 860 1200mm 460nm coupling

PTO shaft 860-1200mm 460Nm coupling Index W35290860Clutch: friction clutch, wide angle

Maximum length: 1250

Minimum length: 860

Inner tube thickness: 36

Outer tube thickness: 43.5

Nominal power: 26 ( 35 )

Mounting to the machine: 1 3/8' Z6'

< p/>Attachment to tractor: 1 3/8' Z6'

Torque: 460

Operating angle: Max 35° temporarily 80°

Bearing diameter : 27

Height of the cross: 74.6

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227301, Cross fork - WR219301, Internal pipe fork . - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR21931129, Coupling - WR213350

Inner pipe wall thickness: 4.5

Thickness outer pipe walls: 3.4

The new R Series of Waryński shafts was created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. The high quality of our products is guaranteed by forged forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV and low temperatures. Thanks to the use of a special ring, Waryński shafts guarantee quick installation.

Clutch: friction clutch, wide-angle

Maximum length: 1250mm

Minimum length: 860mm

Inner tube thickness: 36mm

Outer tube thickness: 43.5mm

Nominal power: 26 ( 35 )KW (HP)

Mounting to the machine: 1 3/8' Z6'cal

Mounting to the tractor: 1 3/8' Z6'cal

Torque: 460Nm

Operating angle: Max 35 ° temporarily 80°

Bearing diameter: 27mm

Height of the cross: 74.6mm

Type of telescopic connector: Triangular tube

Works with : External fork - WR227301, Cross connector - WR219301, Internal pipe fork. - WR219307, Outer pipe fork - WR219306, Inner pipe - WR2323705, Outer pipe - WR2322735, Housing - WR21931129, Coupling - WR213350

Inner pipe wall thickness: 4.5mm

Thickness outer pipe walls: 3.4mm

EAN 5902287204452

The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance when working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we cannot guarantee that the published photos, technical data and descriptions do not contain any omissions or errors.

If you have any doubts about the quality of the products received or possible discrepancies in appearance, please report it to us in an Allegro message. We will definitely do our best
