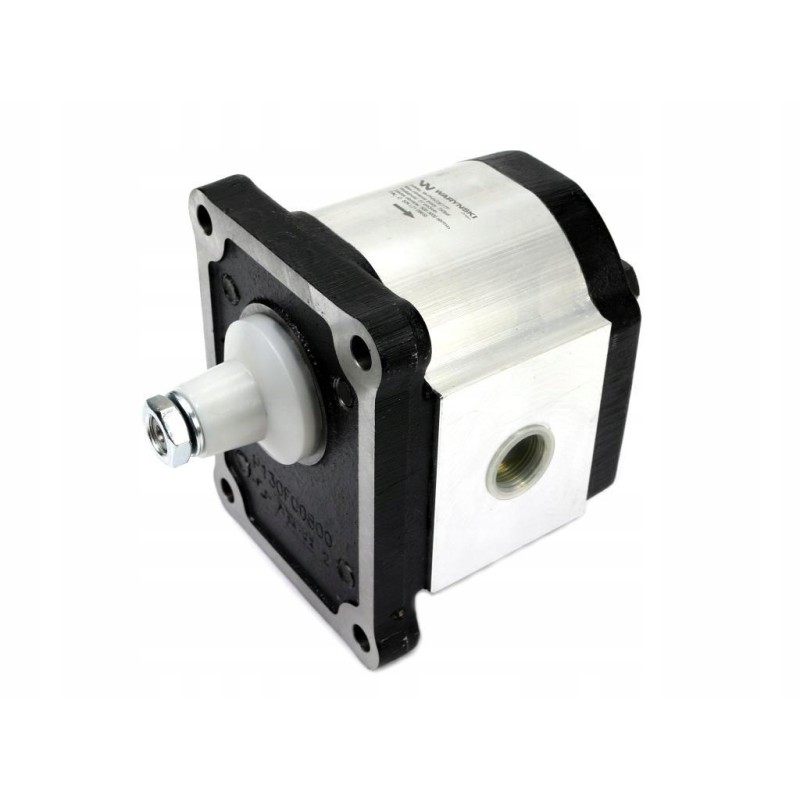

Warynski hydraulic pump 27 0cm3

Hydraulic gear pump 27.0 cm3 (group 3 - European type) shaft 1:8 threaded connections (right rotation) max. 250 bar Waryński EAN: 5902287107906

SKU: W-PHAG3E27P

All the products at our auctions are new and from proven manufacturers

Hydraulic pump, reinforced W-PHAG3E27P (performance: 27.0 cm3/rev) Waryński. Waryński 3-group hydraulic pumps, thanks to their small, compact dimensions and compact and durable structure, are widely used in many industries, agriculture and mobile hydraulics. Our pumps are additionally reinforced with cast iron covers - this guarantees long and failure-free operation. The geometric working volume of pumps in this group ranges from 22 to 61 cm3/rev.

Efficiency: 27 cm3/rev. Type: Hydraulic gear pump, European type. Direction of rotation: right Speed range: 500 - 3000 rpm. Material: Aluminum body, cast iron plates, seals: NBR Max. Instantaneous pressure: 27 (270 bar) - Note: maximum 20 seconds / 1 minute of pump operation (exceeding these parameters may damage the pump) MPa (bar) Max. operating pressure: 250 bar Max. nominal pressure:25 (250) - Note: maximum continuous pump operating pressureMpa (bar) Max. peak pressure:28 (280 bar) - Note: maximum 8 seconds / 1 minute of pump operation (exceeding these parameters may result in immediate damageMpa (bar) ) Oil type: hydraulic mineral HLP HV (DIN 51524) Oil filtration: 10 -25 µm Oil cleanliness class: NAS 1638: 9 / ISO 4406: 1999: 20/18/15 Shaft: conical 1:8, M14x1.5 Operating temperature: ?20°C +80°C Suction port:1' BSPPcal Discharge port:3/4' BSPPcal Centering flange diameter:o 50.8mm Fixing hole spacing:98.5 x 128.0mm Packing per::1

< p/>Shaft: conical 1:8, M14x1.5

Max. Instantaneous pressure: 27 (270 bar) - Note: maximum 20 seconds / 1 minute of pump operation (exceeding these parameters may damage the pump)Mpa (bar)

Capacity: 27cm3/rev

Material: Aluminum body, cast iron plates, seals: NBR

Spacing of mounting holes: 98.5 x 128.0mm

Operating temperature: ?20°C +80°C

Rotation direction: right

Max operating pressure: 250bar

Type: Gear hydraulic pump, European type.

Rotation range: 500 - 3000 rpm.

Type of oil: mineral hydraulic HLP HV (DIN 51524)

Oil filtration: 10 -25µm

Max. nominal pressure: 25 (250) - Note: maximum continuous operating pressure of the pumpMpa (bar)

Centering flange diameter: o 50.8mm

Max. peak pressure: 28 (280 bar) - Note: maximum 8 seconds / 1 minute of pump operation (exceeding these parameters may result in immediate damageMpa (bar)

Oil cleanliness class: NAS 1638: 9 / ISO 4406:1999: 20/18/15

Suction port: 1' BSPPcal

Discharge port: 3/4' BSPPcal

Packing by:: 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. This does not affect the functionality of the part/item. Please read the description and title of the auction when receiving it
