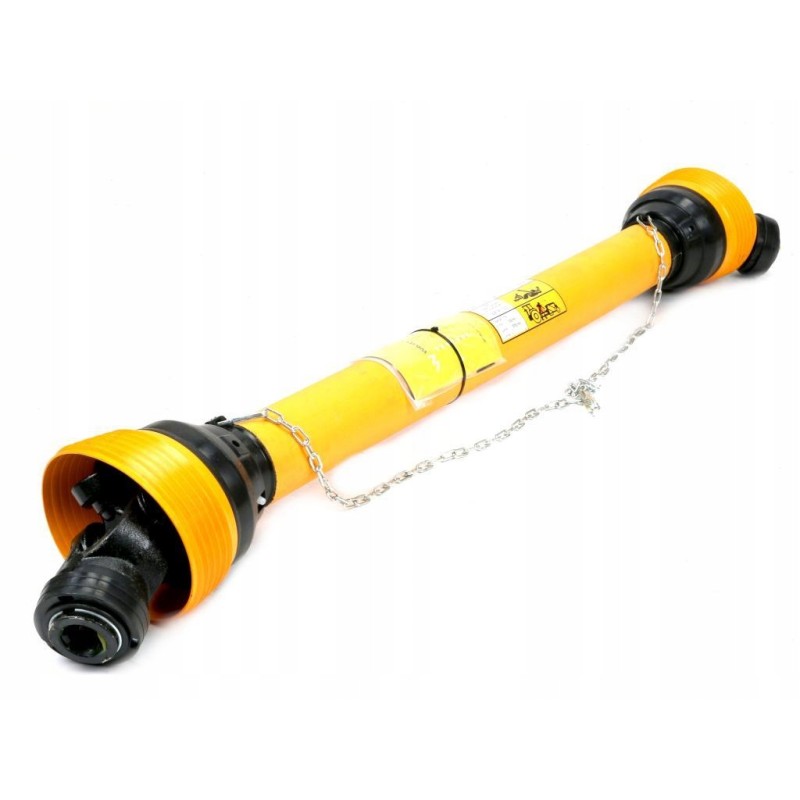

Articulated and telescopic shaft 860 1250mm 830nm z21 ce

PTO shaft 860-1250mm 830Nm Z21 CE 2020 series 6R Waryński EAN: 5902287227277

SKU: W6B1B2860

All products at our auctions are new and from proven manufacturers The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: None Maximum length: 1250 mm Minimum length: 860 mm Inner tube thickness:45mm Outer tube thickness:54mm Nominal power:47 ( 64 )KW (HP) Mounting to the machine:1 3/8' Z21'inch Mounting to the tractor:1 3/8' Z6'inch Torque:830Nm Angle working: Max 17° Bearing diameter: 30.2 mm Cross height: 91.6 mm Telescopic connector type: Triangular pipe Works with: External fork - WR227601, WR227602, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363705, Outer pipe - WR2362735, Housing - WR22961129, Inner pipe wall thickness:5.5mm Outer pipe wall thickness:4mm Clutch opening torque:None Packing in::1 Pipe thickness internal::45mm Thickness of the outer tube::54mm Nominal power::47 ( 64 )KW (HP) Clutch disengaging torque:None

Mounting to the tractor: 1 3/8' Z6'cal

Mounting to the machine: 1 3/8' Z21'cal

Type of telescopic connector: Triangular pipe

Minimum length: 860 mm

Maximum length: 1250 mm

Nominal power: 47 ( 64 )KW ( HP )

Coupling: None

Inner pipe thickness: 45 mm

Outer pipe thickness: 54 mm

Diameter bearings: 30.2mm

Cross height: 91.6 mm

Works with: External fork - WR227601, WR227602, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363705, Outer pipe - WR2362735, Housing - WR22961129,

Torque: 830Nm

Working angle: Max 17°

Inner pipe wall thickness: 5.5 mm

Outer pipe wall thickness : 4mm

Clutch disengaging torque: None

Packing by:: 1

Inner tube thickness:: 45mm

Outer tube thickness:: 54mm

Nominal power:: 47 ( 64 )KW (HP)

Clutch disengaging torque: None

Photos included the auction is for illustrative purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
