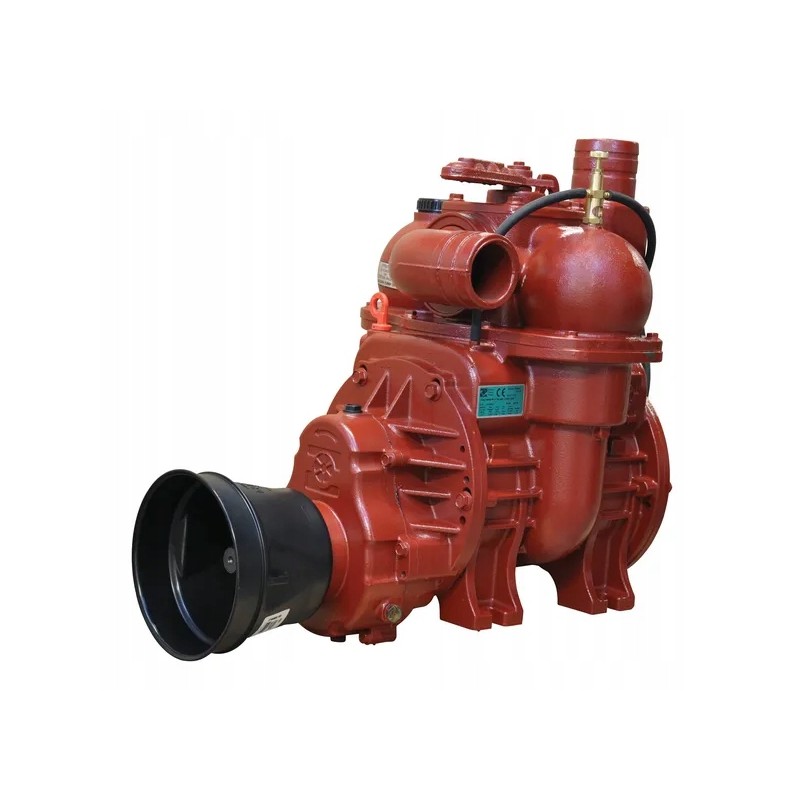

Vacuum pump standard bp

Standard vacuum pump BP

Part number: MEC9000M

EAN:

Unit: Art

Specifications:

MEC II series pumps are equipped with an automatic protection system. In this way, for example, you can protect the impeller and the impeller body in the event of a blade break by moving the impeller together with the mounting flange downwards. Pumps with a "ballast system", which can be identified by the B symbol at the end of the article number (e.g. MEC9000MB), have longer working time in vacuum mode.

The working time at a pressure of -0.95 bar ranges from 8 minutes (standard) to a maximum of 15 minutes. In the case of -0.6 bar, continuous operation is permitted.

MEC II series pumps are supplied as standard with durable (high temperature resistant) vanes

MEC II series pumps are equipped with a temperature display so that the temperature can be read during operation

Via inspection hole, it is possible to determine the state of wear of the blades, on the basis of which it is possible to determine when the blades should be replaced

Each pump is subjected to a final inspection at the factory, during which, among others, vacuum, sealing and lubrication

An inspection report is created for each pump based on the serial number

Application: These types of vane vacuum pumps are mainly used in agriculture for filling and emptying slurry tanks

Properties: These pumps can produce both overpressure and underpressure Technical information:

Structure of the article numbers: MEC = series, 9000 = type, M = intermediate drive 540 rpm, A = automatic lubrication, B = ballast system

For pumps without automatic lubrication (without "A" in the article number), the pump is equipped with with forced lubrication, regulated by drip nozzles

In the case of a pump with automatic lubrication, the lubricating oil quantity is factory set and cannot be changed without tools

In the case of forced lubrication, e.g. automatic lubrication, this function must be monitored at all times during operation

Pumps with indirect drive (M) must be driven counterclockwise

The direction of rotation is determined when the driven axle is directed towards the person looking at it

In the case of a direct drive of the pump (e.g. by means of a draft machine) it must be it is driven in a counterclockwise direction

Oil to be used to lubricate the blades: original BP oil (article number BP5070)

Benefits:

Minimum repair costs thanks to the unique automatic safety system

Because BP pumps are carefully tested, inspected and packaged, 100% reliable startup is guaranteed

Nominal flow: 9030l/min Drive type: PTO 540 rpm Direction of rotation: Counterclockwise Ballast air injection system: No

It consists of:

Propshaft cover included

Without overpressure valve (item 0200013) and vacuum valve (item 0155513)

Pumps are delivered without lubricating oil (item BP5070)

Lubrication system type: Forced

Blade type: Long life

Damage protection system: Yes

Vacuum max.: 0.95BAR Relative pressure max.: 1.5BAR Power consumption at max. pressure: 36kW Power consumption at vacuum: max.: 17kW D, Hose connection diameter: 80mm Safety valve connection diameter: 2 inch Vacuum valve connection diameter: 1-1/2 inch Total length: 670mm

Ototal width: 390mm

HHeight: 605mm

FMounting hole diameter: 22mm

B,LSpacing of mounting holes:

189mm

246mm

ADistance of mounting holes to the end of the shaft: 340mm CDistance of mounting holes to the end: 141mm Distance from the center of the shaft to the end: 195mm Distance from the shaft axis to the extreme right edge: 195mm IDistance from the shaft axis to the base: 69mm

Shaft diameter: 1-3/8 inch Maximum shaft revolutions: 540 rpm Tank capacity: 2.5l Weight: 145kg
